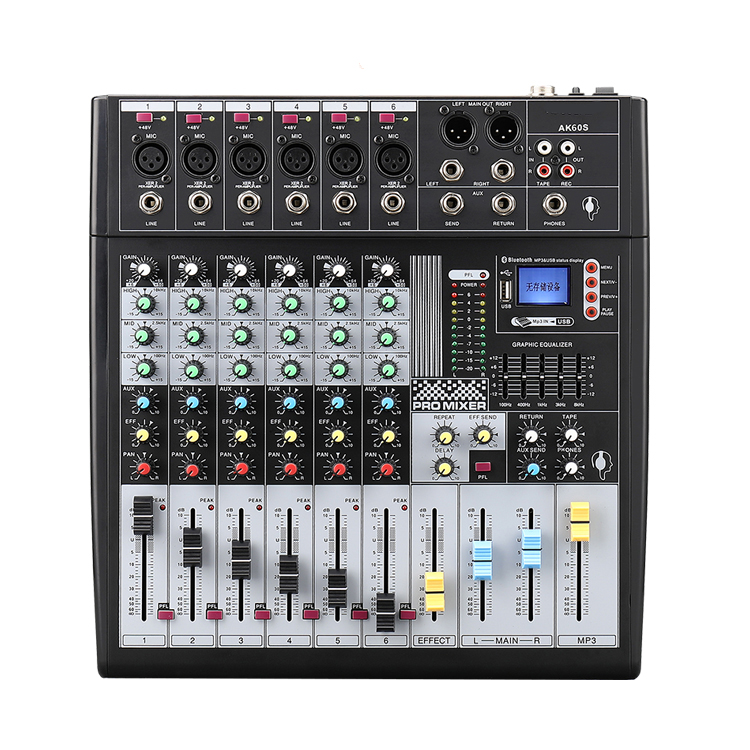

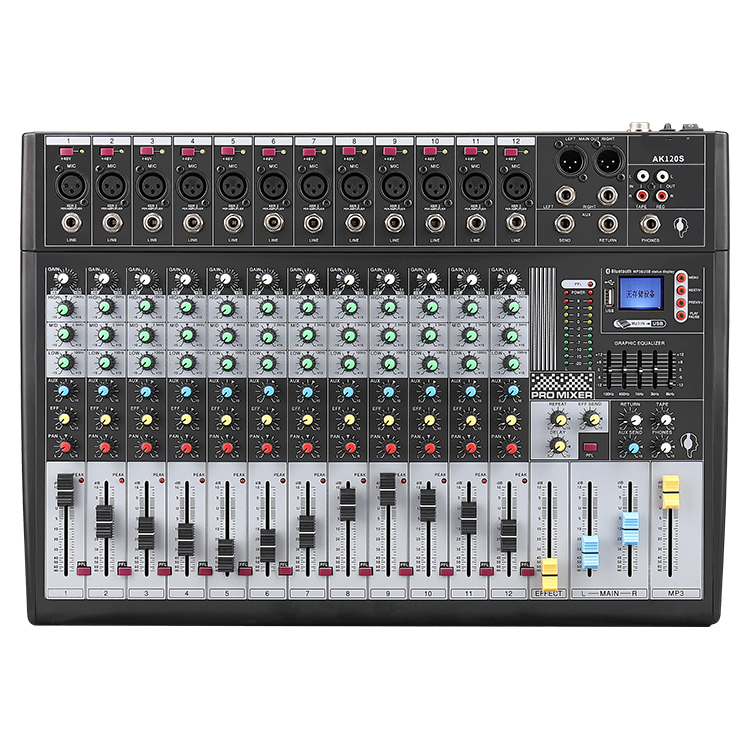

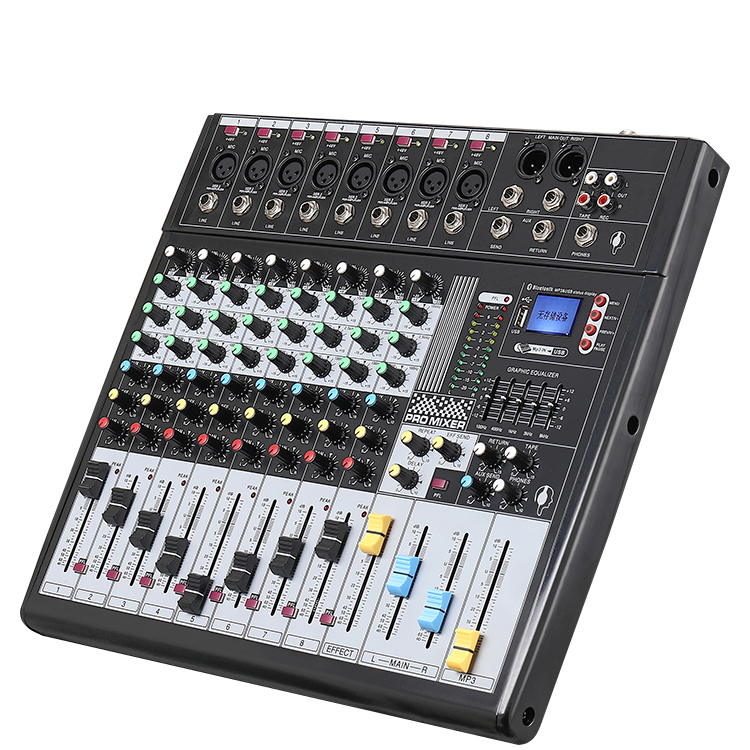

AK60S、AK80S、AK120S Large Model Pure Mixer

Specification (technical parameters):
▲ Maximum Output Level: 18dBm (1KHz, THD=0.5%)
▲ Residual Noise: -110dB
▲ S/N (Signal to Noise Ratio): ≤ 78dB
▲ Equivalent Input Noise (equivalent noise source input electromotive force): -115dBm
▲ Headphone Power: 200mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization:
Low (low frequency): 80Hz ±15dB
Mid (mid frequency) ): 2.5KHz±15dB
High (high frequency): 12KHz ±15dB
▲ Gain Control: MONO (mono)-60dB~-40dB
▲ Gain Control: ST (stereo) -38dB
▲ Frequency Response (frequency response): 20Hz~20KHz(±3dB)
▲ THD+N (total harmonic distortion + noise): ≤0.003% (1KHz, 0.775V)
▲Input voltage: DC2000MA(2A) 12V DC
