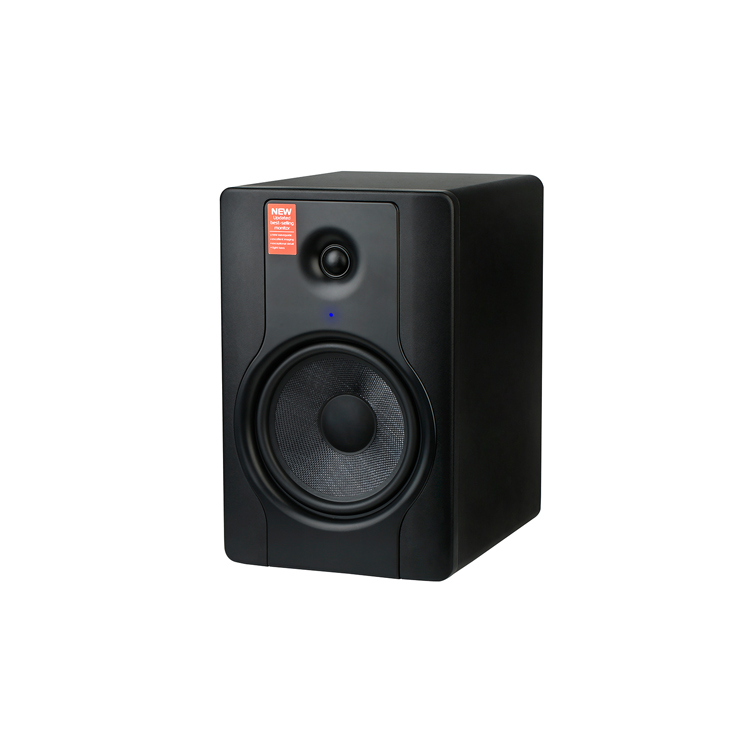

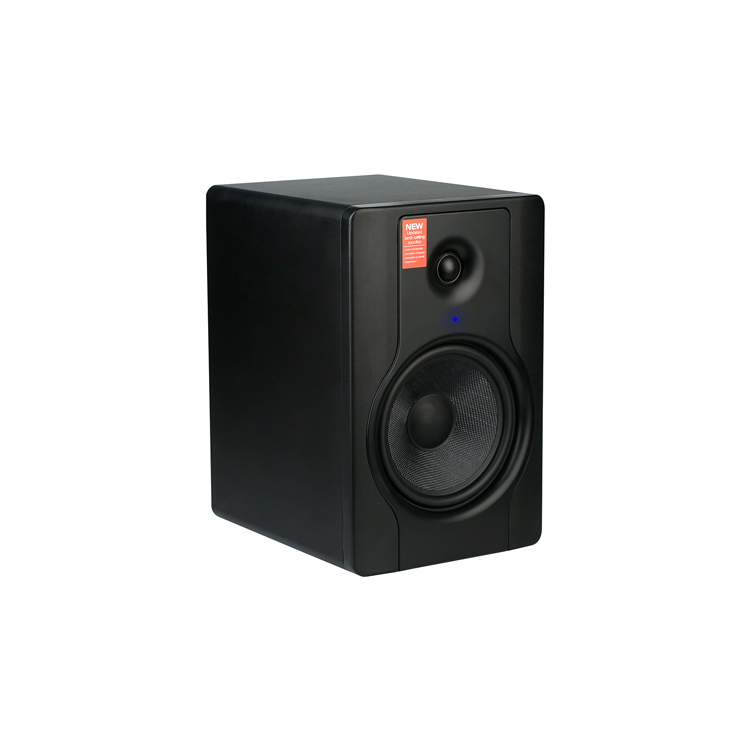

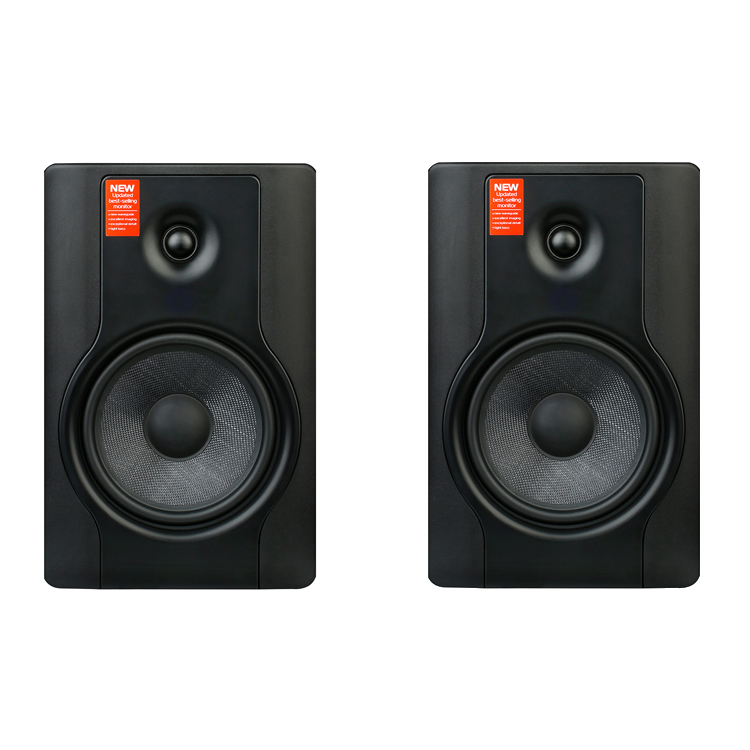

BX8D2 8 Inch Monitor Speaker

MOQ: 10pcs

Quick info

BX studio monitor series is trusted by more musicians and recording professionals than any other. Now, the BX8 D2 monitors extend the bestsellers’ legacy* with an elegant new design inside and out. We leveraged technology from our high-end monitors to extend the frequency response and provide an even more natural listening experience.

    •  Frequency Response:38 Hz-22 KHz
    • Crossover Frequency:2.2 KHz
    • LF Amplifier Power:70W
    • HF Amplifier Power:60 W
Back to Contents
  • Description
  • Additional Information

Description:

BX studio monitor series is trusted by more musicians and recording professionals than any other. Now, the BX8 D2 monitors extend the bestsellers’ legacy* with an elegant new design inside and out. We leveraged technology from our high-end monitors to extend the frequency response and provide an even more natural listening experience. Custom Class A/B analog amplifiers deliver superior dynamics and tonal accuracy across the frequency spectrum—while the latest-generation woven Kevlar low-frequency drivers and waveguide-loaded silk dome tweeters provide rich, defined sound. With the BX8 D2, you’ll enjoy the utmost accuracy in an engaging listening experience.



Type 2-way near-field studio reference monitors
LF Driver 8-inch(203 mm) Kevlar curved cone with high temperature voice
coil and damped rubber surround, magnetically shielded
HF Driver 1-inch (25 mm) magnetically shielded natural silk dome
Frequency Response 38 Hz-22 KHz
Crossover Frequency 2.2 KHz
LF Amplifier Power 70W
HF Amplifier Power 60 W
Signal-to-Noise Ratio > 100 dB typical A-weighted

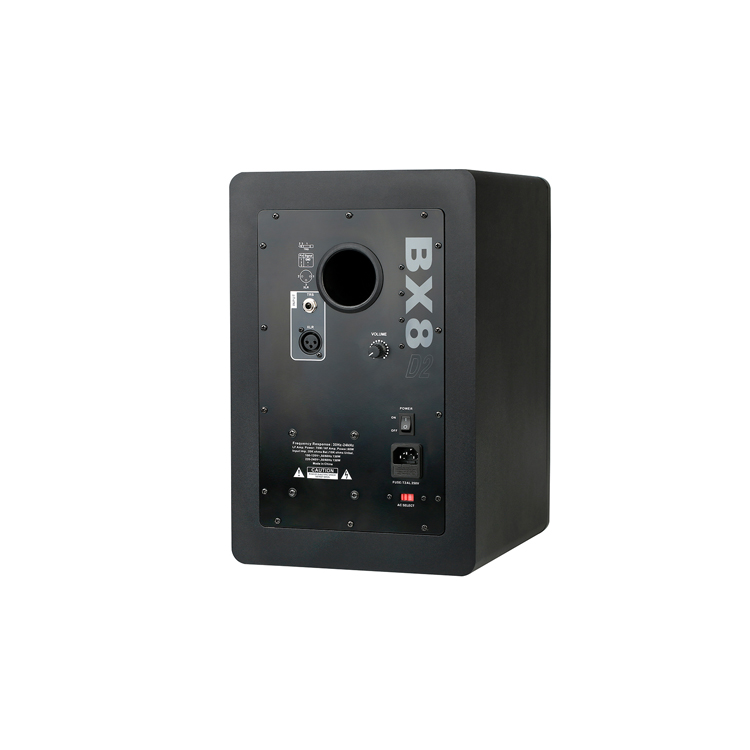

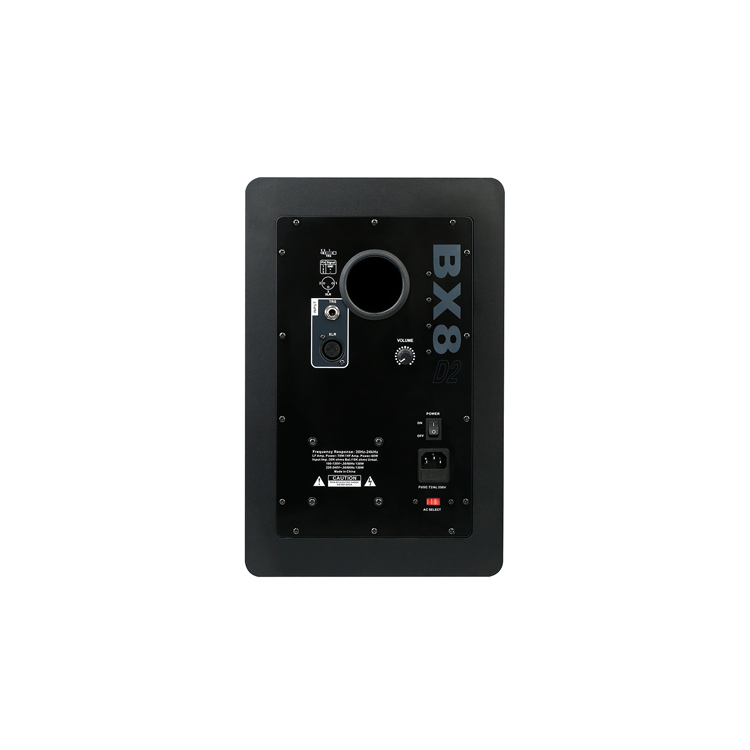

Input Connectors 1 x XLR balanced input connector
1 x TRS balanced/unbalanced input connector
Polarity Positive signal at + input produce outward LF cone displacement
Input Impedance 20 KΩ balanced, 10 KΩ unbalanced
Input Sensitivity 85 mV pink noise input produces 90 dBA output SPL at 1 meter
with volume control at maximum
Protection RF interference, output current limiting, over temperature, turn-
on/off transient, subsonic filter, external mains fuse.
Indicator Power on/off indicator on rear panel
Power Requirements Factory-programmed for 115 V ~50/60 Hz, 230 V ~50/60 Hz,or
100 V~50/60 Hz
Cabinet Vinyl-laminated high-acoustic-efficiency MDF
Dimension
(height x width x depth)
15″ x 10″x12″
15″x10″x12″
381 mm x 254 mm x 305 mm
Weight
(without packing)
26.4 lbs.
12kg
