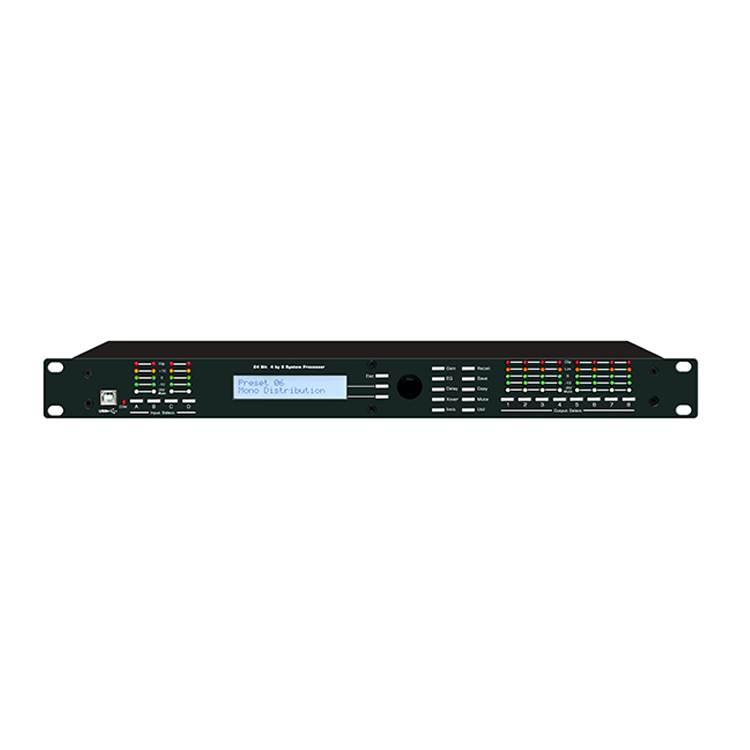

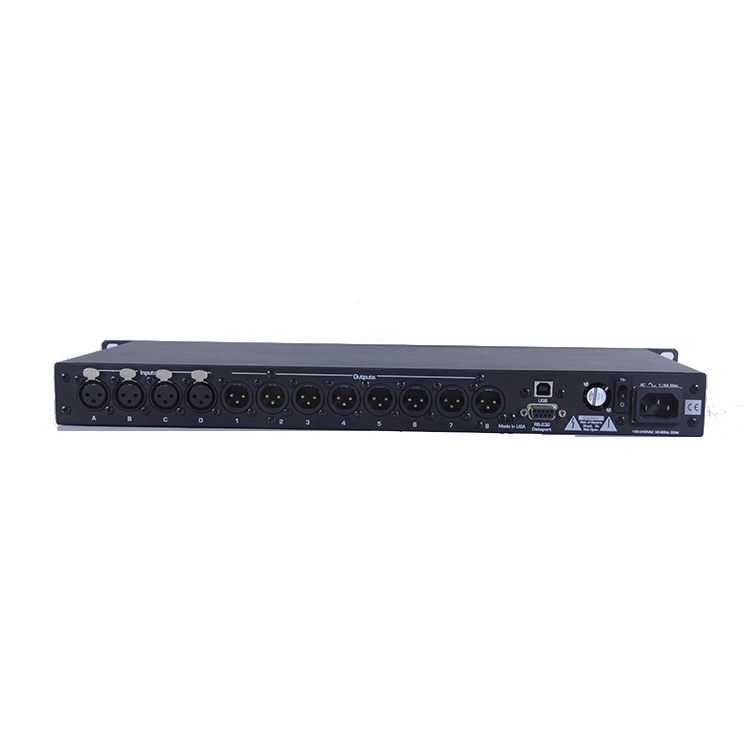

DSP480 4 In 8 Out Audio Processor

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

INPUT IMPEDANCE	>10k Ohm,electronically balanced
CMMR	>50dB(3Hz-20KHz)
OUTPUT IMPEDANCE	50 Ohms,electronically balanced
MAXIMUM INPUT LEVEL	+20dBu
MAXIMUM OUTPUT LEVEL	+20dBu into 600 Ohms or greater
DYNAMICRANGE	15Hz-20KHz,25dB 15Hz-40KHz,112dB unweighted 22Hz to 22kHz,>117dB on AES?EBU input
DISTORTION(THD)	< 0.005%,20Hz-20kHz@+10dBu output
DELAY STEP	21us
MAXIMUM DELAY	7ms
OUTPUTGAIN	±21dB variable in 0.1dB steps
INPUTGAIN	±15dB variable in 0.1dB steps
MAXIMUM NUMBER OF EQ FILTERS	60(depending on crossover slopes)
EQ GAIN	±15dB variable in 0.2dB steps
Q(BANDWIDTH)	0.05 to 3 octaves,variable in 0.05 steps
EQ FREQ	15Hz to 20kHz
DYNAMIC SLOPE	2:1 to 20:1 (dynamic EQ’s only)
Dimensions(HWD)	47×483×160mm
Shipping(HWD)	80×525×250mm(0.03CBM)
Net weight	3.6kg
GROSS WEIGHT	5.0kg
