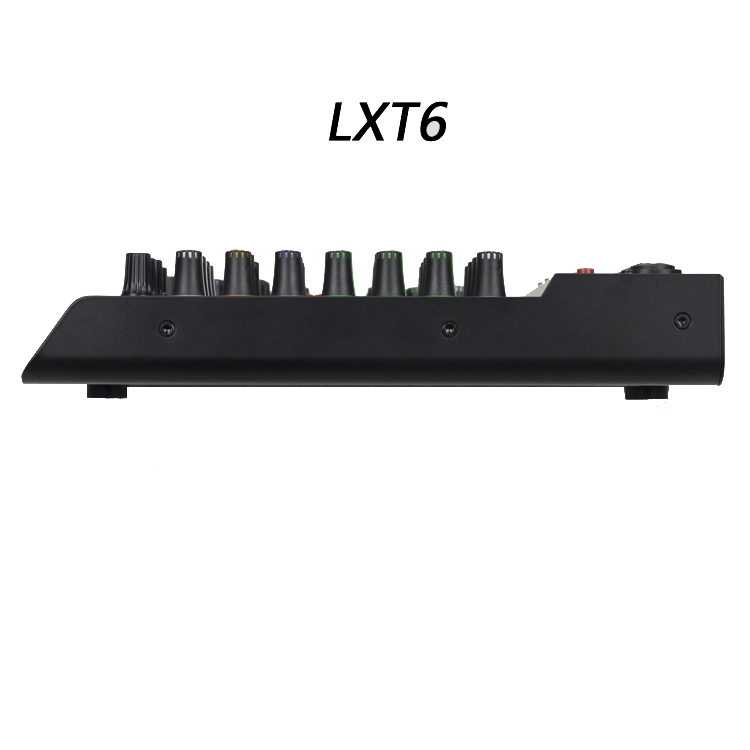

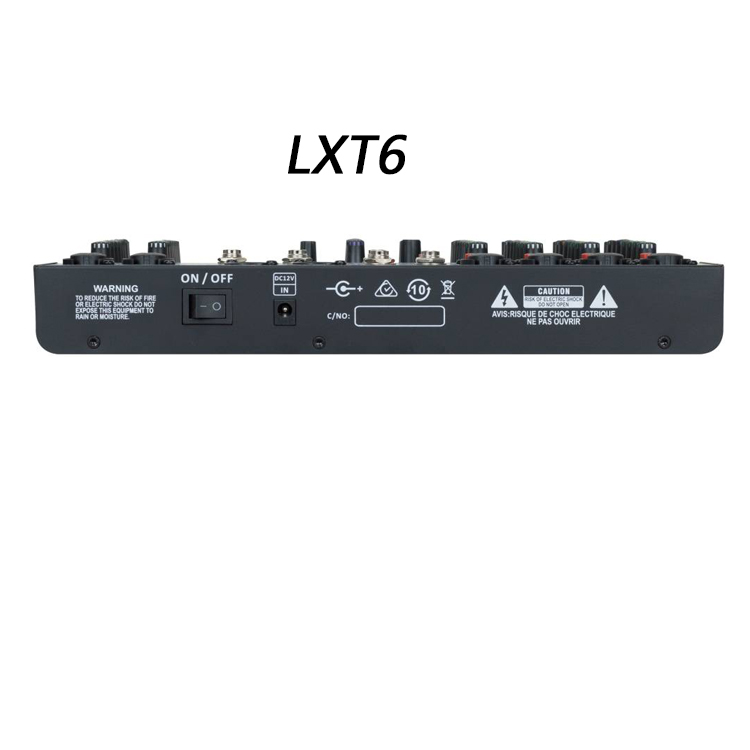

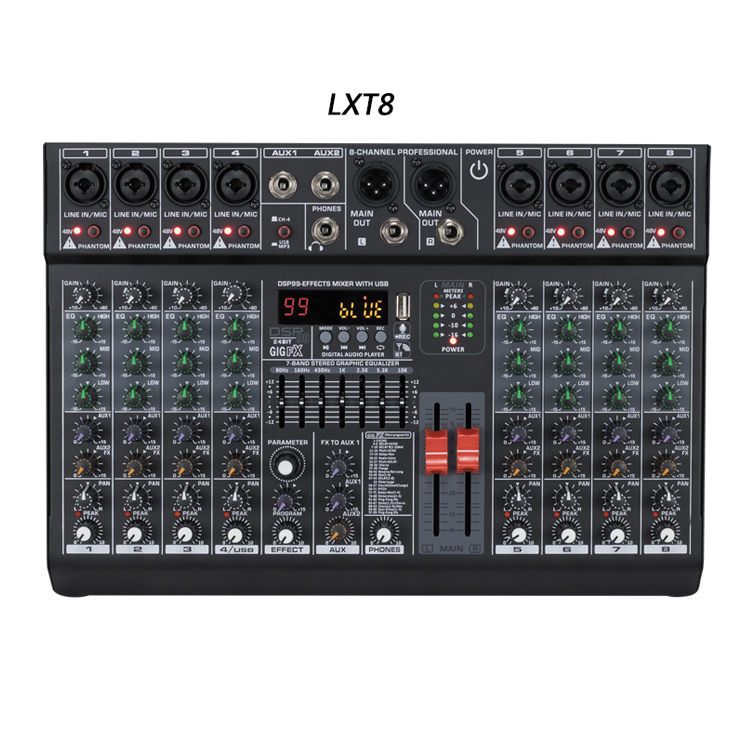

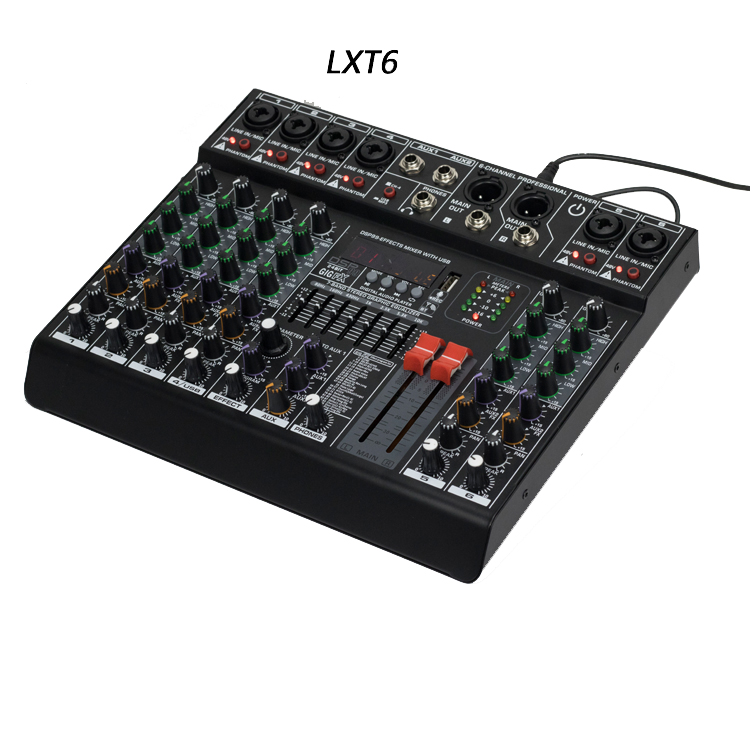

LXT 6/LXT 8 mixer audio

Ultra-thin design, built-in automatic variable frequency power supply (technology patent has been applied for).
Support USB playback interface, U disk recording (MP3 format)
4 monophonic (MIC), 48V microphone (channel independent 48V switch), channel three-band equalization, high-gain microphone
amplifier circuit. 7-band high-precision output equalizer.

Built-in 16 kinds of DSP effects (96KHZ/24BT) (display 1–16), support fine-tuning of effects.
Built-in 4.0 bluetooth player (controllable type) digital time track display, channel effect adjustable level,
60mm high-precision push-pull potentiometer (channel volume/output volume).
Mic. channel with mute button.

▲ Maximum Output Level: 18dBm (1KHz, THD=0.5%)
▲ Residual Noise: -110dB
▲ S/N (Signal to Noise Ratio): ≤ 78dB
▲ Equivalent Input Noise (equivalent noise source input electromotive force): -115dBm
▲ Headphone Power: 200mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization:
Low (low frequency): 80Hz ±15dB
Mid (mid frequency) ): 2.5KHz±15dB
High (high frequency): 12KHz ±15dB
▲ Gain Control: MONO (mono)-60dB~-40dB
▲ Gain Control: ST (stereo) -38dB
▲ Frequency Response (frequency response): 20Hz~20KHz(±3dB)
▲ THD+N (total harmonic distortion + noise): ≤0.003% (1KHz, 0.775V)
▲Input voltage: DC2000MA(2A) 12V DC
