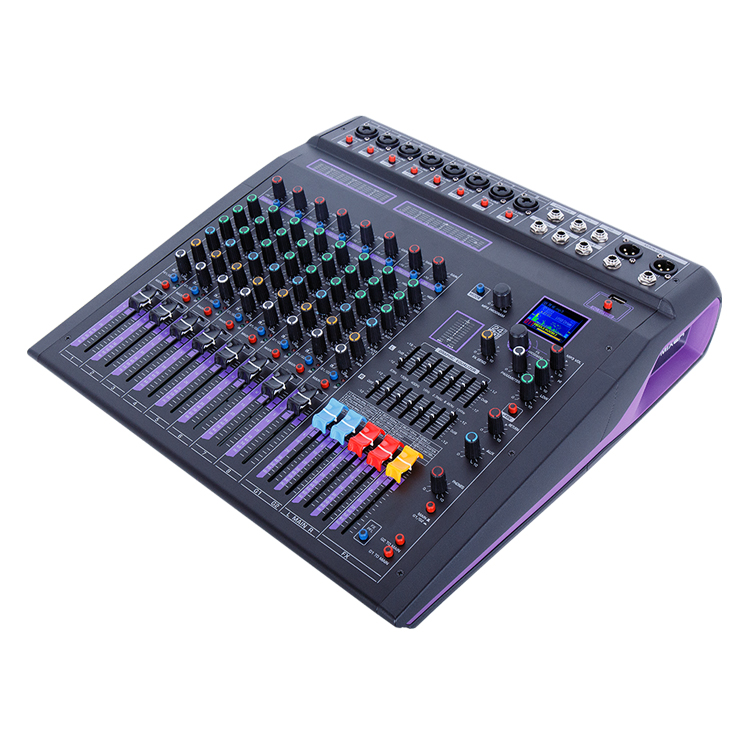

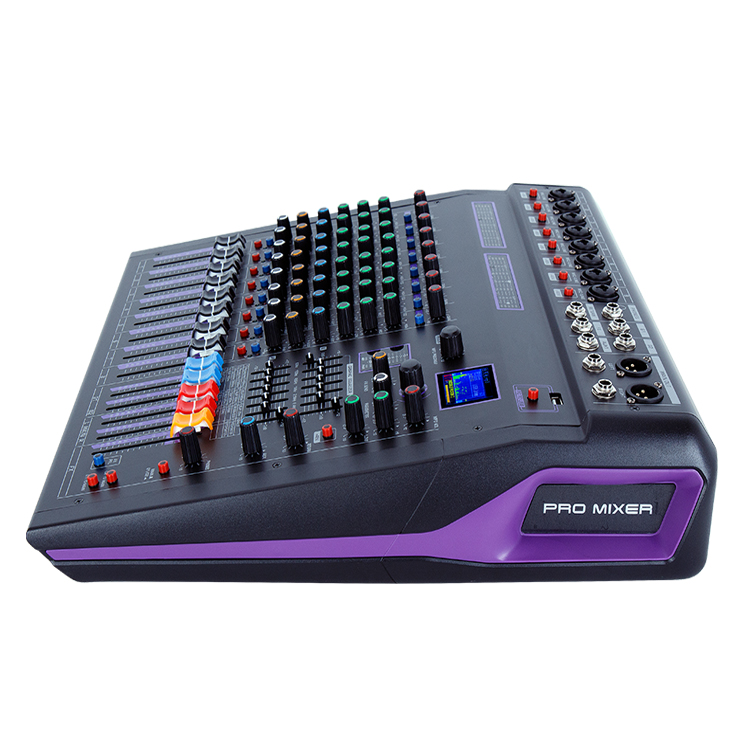

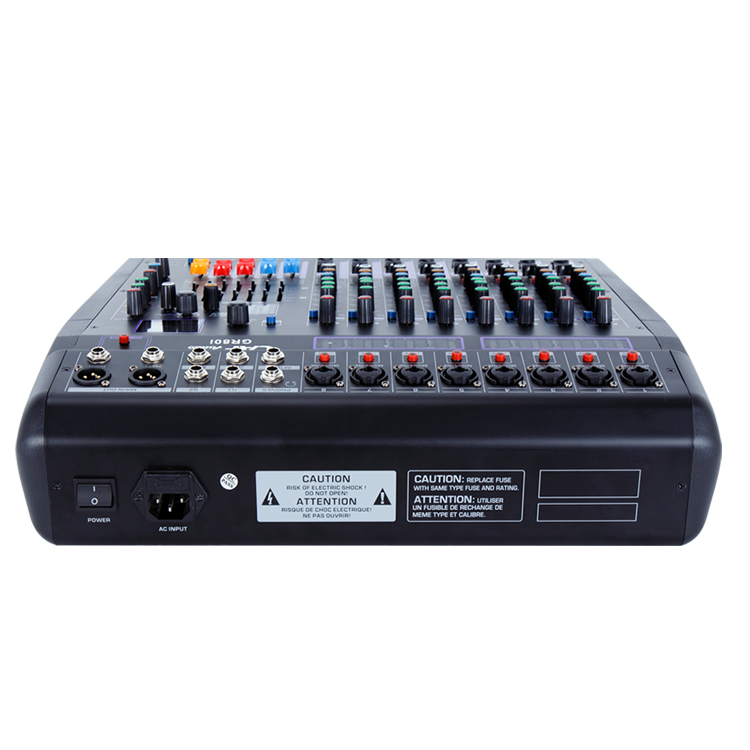

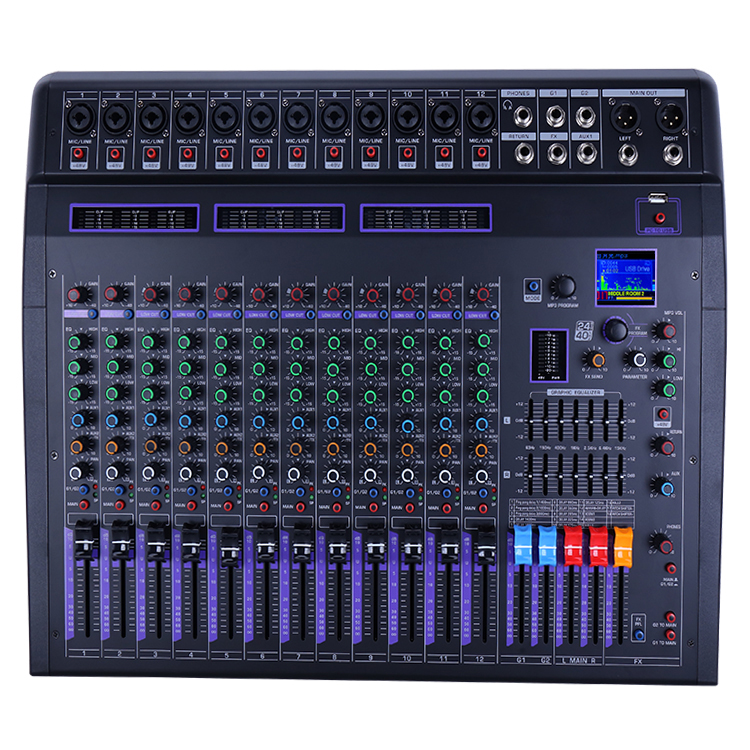

GR80i、GR120i Professional Audio Mixer

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

Description

Specification (technical parameters):
▲ Maximum Output Level: 18dBm (1KHz, THD=0.5%)
▲ Residual Noise: -110dB
▲ S/N (Signal to Noise Ratio): ≤ 78dB
▲ Equivalent Input Noise (equivalent noise source input electromotive force): -115dBm
▲ Headphone Power: 200mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization:
Low (low frequency): 80Hz ±15dB
Mid (mid frequency) ): 2.5KHz±15dB
High (high frequency): 12KHz ±15dB
▲ Gain Control: MONO (mono)-60dB~-40dB
▲ Gain Control: ST (stereo) -38dB
▲ Frequency Response (frequency response): 20Hz~20KHz(±3dB)
▲ THD+N (total harmonic distortion + noise): ≤0.003% (1KHz, 0.775V)
▲Input voltage: DC2000MA(2A) 12V DC

Model	GR80i	GR120i
Line Channel	8	12
Channel EQ	3 BAND
AUX Output	2
Return	1
EFFECT	128 effect
Main EQ	7 BAND
Main OUT	1 Stereo
Phantom Power	48V DC
Total harmonic distortion	< -0.1 %
Frequency response	20Hz-20KHz +1 dB /-3dB
S/N	-75db
Resi dual output noise	<-80dBu
Gain control	MIC 35dB(20dB-60dB) Line 20dB(20dB-60dB)
Power consumption	2 x350W
Hea dphone output power	150mW(1 KHz,THD=0.5%,200 Ω
Maximum output level	18dBm(1KHz,THD=0.5%)
