◎ one rack space is occupied
◎ XTB-480 four input interfaces-eight output interface inputs can be assigned to any one output Six output interface inputs can be assigned to any one output
◎ The slope is 12 dB/Oct, 18 dB/Oct, 24 dB
◎ Oct and 48dB/Oct/682 ms input delay, 21 ms output delay
◎ Using Linkwits-Riley, Bessel and Butterworth filters
◎ Parametric equalizer: full bandwidth, 1/64th to 4th octave range
◎ Each output is equipped with a limiter intuitive user interface
◎ Can be programmed through the front panel and RS232
◎ 48 KHz sampling frequency
◎ Independent input and output instructions

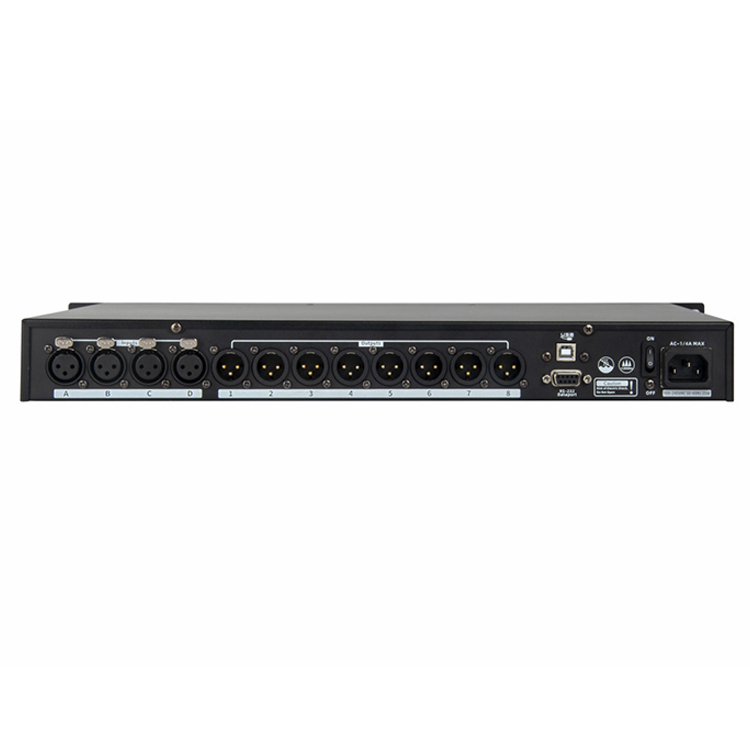

◎ Balanced input and output XLR speaker interface
◎ Equipped with special PC control software
◎ Frequency Response: 20Hz-20kHz, ±0.25dB
◎ Distortion (THD + N): <0.01%
◎ Dynamic range:>110
◎ Maximum delay Maximum delay: 682ms on inputs, 682ms on outputs
◎ Output gain adjustment: Output gain adjustment: ﹣40dB to ﹢12dB
◎ Parametric equalizer: Parametric equalizer: 6 segments per input, 4 segments per output
◎ Input graphic equalization Input GEQ: No
◎ Crossover filters: 12, 18, 24, or 48dB per octave
◎ Limiter threshold: ﹣20 to +20dBu
◎ Maximum output level: Maximum output level: ﹢20dBu
◎ Input impedance: Input impedance: 18kΩ
◎ Output impedance: Output impedance: 100Ω
◎ Power requirements: Power Requirement: 90-240 VAC
◎ Dimensions (W×H×D, mm): 483×44.4×203
◎ Net Weight: about 4.05kgavailable to choose
