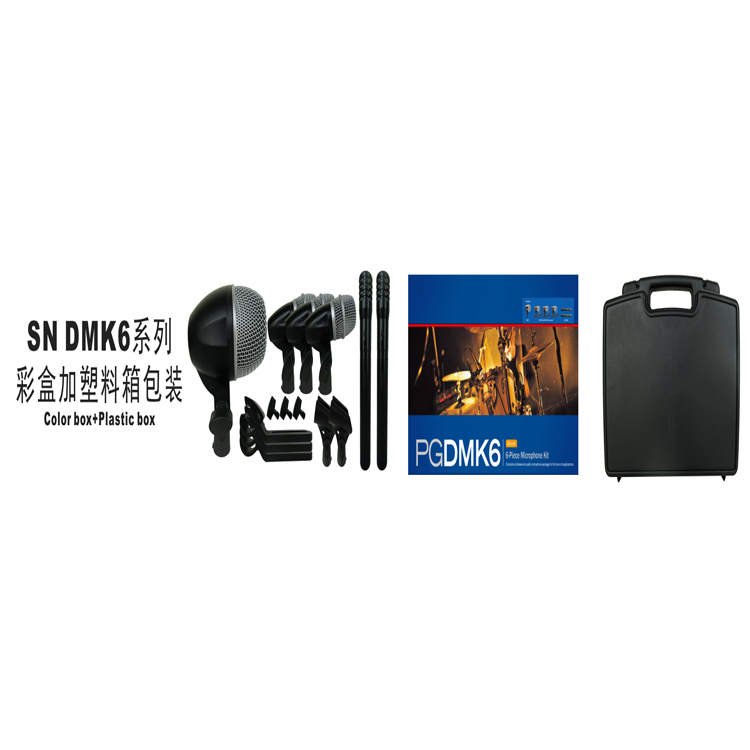

PGDMK6 Drum Microphone

PGDMK6 series technical parameters:

PG52 Bass drum kit microphone
Technical specification:
Microphone type: moving coil
Frequency response: 30 to 13,000 Hz
Pickup mode: heart-shaped (one-way)
Sensitivity (1,000 Hz) : -55 dBV/Pa, (1.8 mV), 1 Pa=94 dB sound pressure level
Output impedance (1000 Hz) : 300 ohms

PG56 snare or tom-toms microphone
Technical specification:
Microphone type: moving coil
Frequency response: 50 to 15,000 Hz
Pickup mode: heart-shaped (one-way)
Sensitivity (1,000 Hz) : -56 dBV/Pa, (1.6 mV), 1 Pa=94 dB sound pressure level
Output impedance (1000 Hz) : 200 ohms

PG-81 instrument microphone, condenser microphone
Technical specification:
Microphone type: capacitor (dielectric bias)
Frequency response: 40 to 18,000 Hz
Pickup mode: heart-shaped (one-way)
Sensitivity (1,000 Hz) : -48 dBV/Pa, (4.0 mV), 1 Pa = 94 dB sound pressure level
Output impedance (1000 Hz) : 600 ohms
SNR: 68 dB (IEC 651)*, 94 dB sound pressure level
Power supply: phantom power supply
Supply voltage: 11 to 52 Vdc
Battery power: 1.5v alkaline AA type
