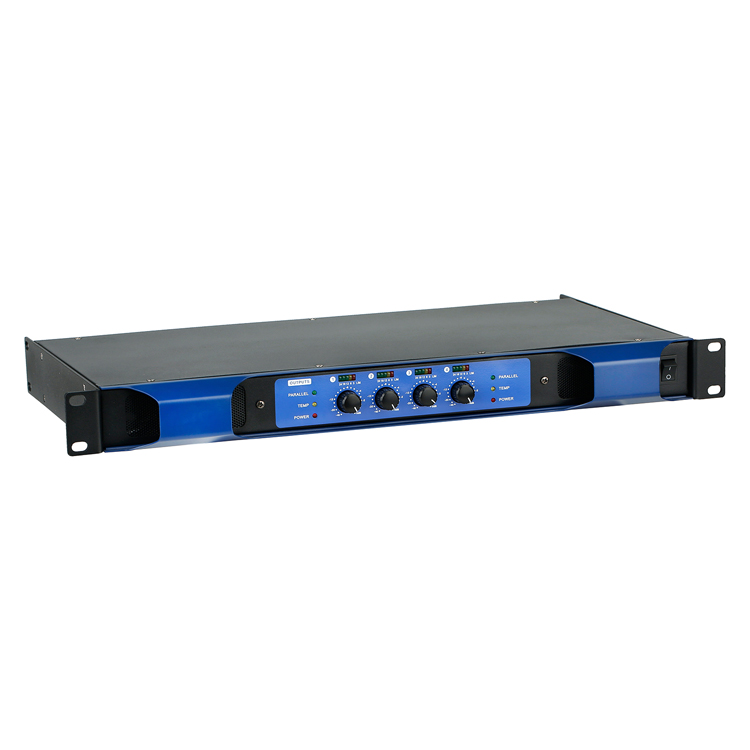

MC2450、MC2600、MC4450、MC4600 1U Digital Amplifier

Quick info

Super large capacity switching power amplifier Automatic limiting output, short circuit, overload, over temperature, startup delay and other protection functions

Back to Contents
  • Description
  • Additional Information

Super large capacity switching power amplifier

Automatic limiting output, short circuit, overload, over temperature, startup delay and other protection functions

The amplifier is equipped with a delayed start system to protect the speaker from damage caused by impact

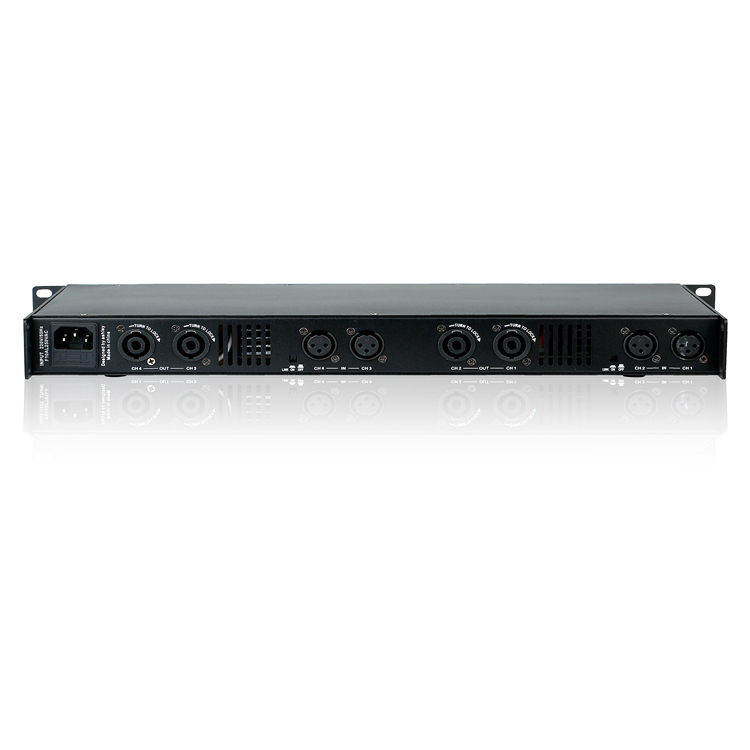

The rear panel is equipped with dual channels

Balanced input interface

SPEAKON output connector

483MM standard rack structure

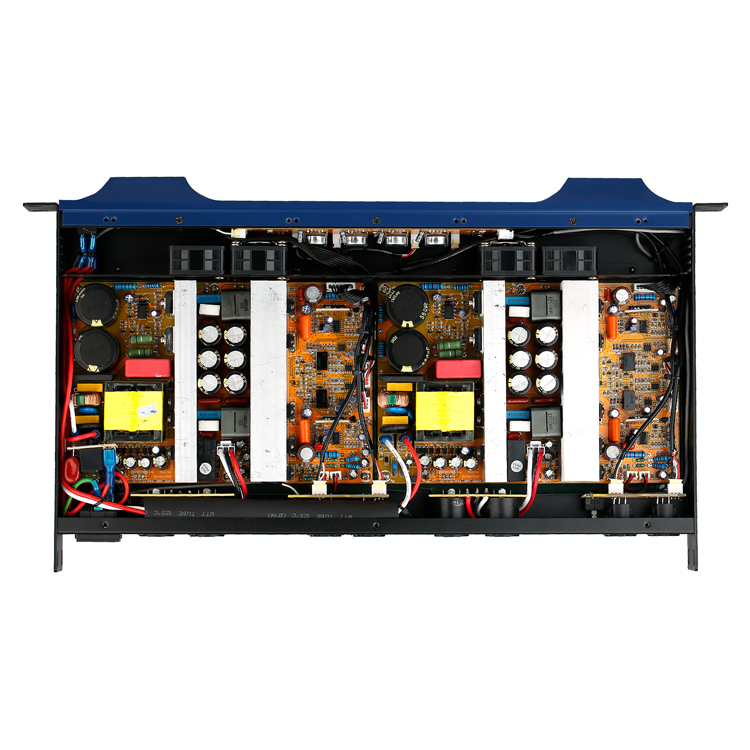

The power amplifier and switch power supply have separate cooling systems

Computer fan adopts advanced stepless speed change circuit control

1U design, lightweight body, easy to carry and install

立体声输出功率                  8Ω Stereo Power 2*450W 2*650 4*450W 4*600W
立体声输出功率                 4Ω Stereo Power 4x900W
立体声输出功率                  2Ω Stereo Power
频率相应                  Frequency Response 20Hz~20kHz  ±3dB
总谐波失真 THD <0.03% @ 8Ω 1KHz
串音 Crosstalk >70dB @ 8Ω 1KHz
输入阻抗                             Input Impedance 20K Ω (Balanced)/10KΩ(Unbalance)
输入灵敏度                    Input Sensitivity 0.775V/1.0V/1.4V
保护Protection Overheat,short circuits,DC limited and softstart,Output relay-Zero Current Switch,Smart Clip limiter.
高度 Height 1U 1U 1U 1U
