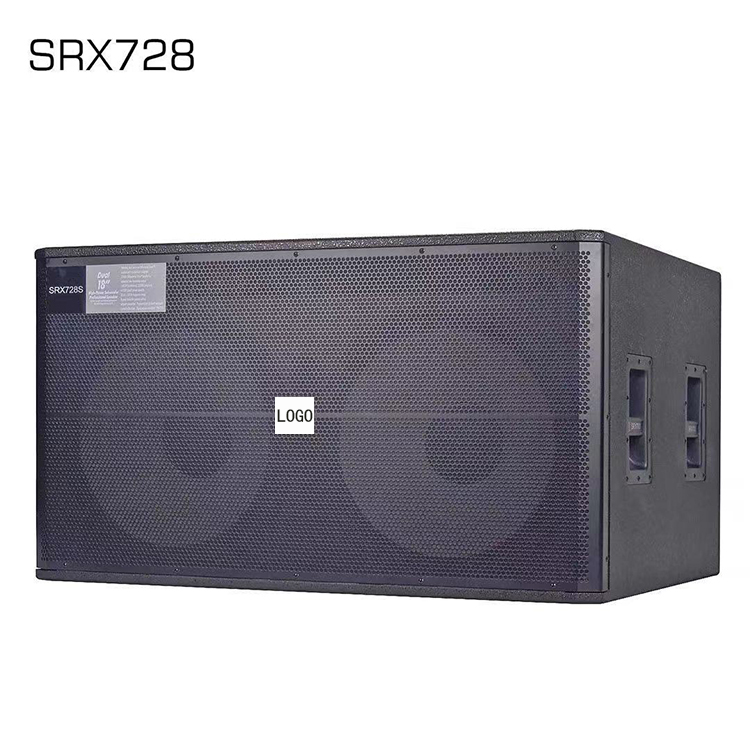

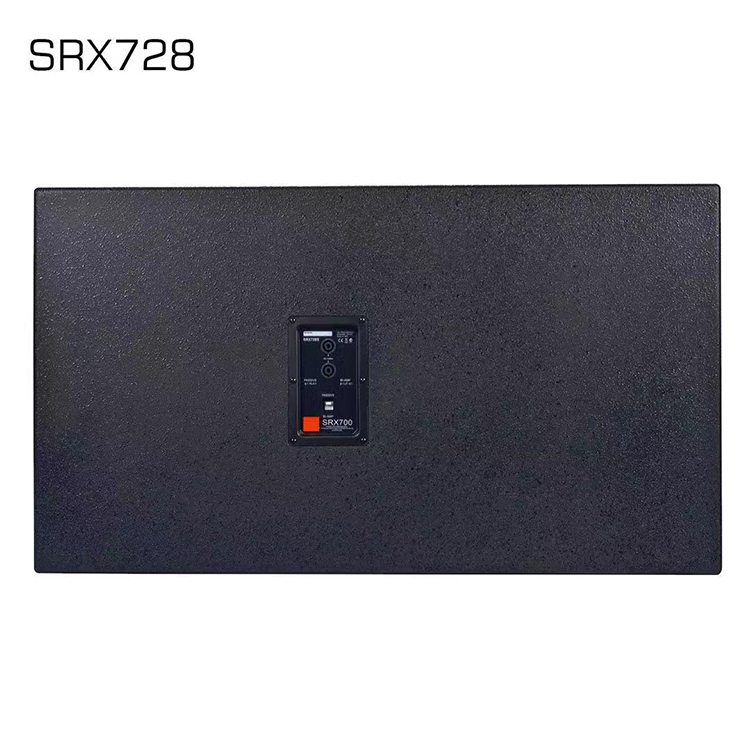

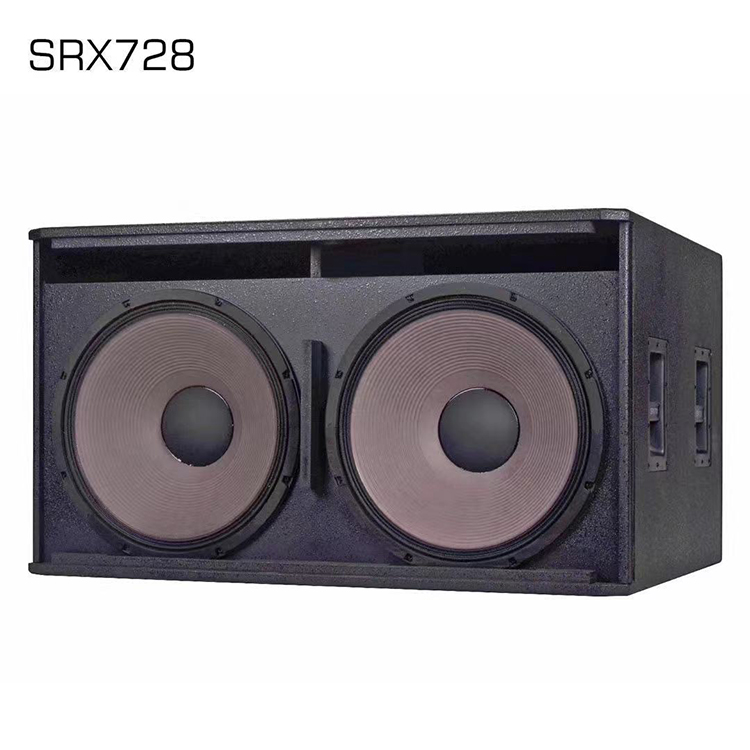

SRX728 Dual 18 Inch Subwoofer

MOQ: 10pcs

Back to Contents
  • Additional Information

The SRX series is a new generation of cost-effective professional speaker systems designed specifically for various small and medium-sized sound reinforcement locations. It has excellent characteristics such as high conversion efficiency, strong penetration, and wide dynamic range. Due to its high conversion rate, it is easy to match with power amplifiers, making driving simple and easy

The coverage characteristics of the high-frequency horn and bass unit, which have been strictly designed and matched, achieve a smooth transition and provide a wide sound coverage angle, allowing the sound to naturally expand.

The R&D personnel used German DAAS software to conduct extensive comparative tests on the built-in frequency division board, and combined with the characteristics of the speaker unit, designed this front oriented speaker with excellent performance in both listening and singing. This series of speakers adopts a fourth order frequency division combination circuit design, ensuring that the speaker does not distort under large dynamic conditions, with crystal clear and transparent sound, and excellent spatial and texture.

The box body adopts a wooden pattern structure and an internal shockproof design, which has good low-frequency damping characteristics and low sound dyeing, greatly improving the purity of the sound and the strong low-frequency dynamic feeling. The smooth appearance, durable black sand paint spraying surface, high-strength steel mesh, and ergonomic handle design all add highlights to this product

Model SRX728
Frequency   Response (±3 dB) 83Hz – 18kHz
Sensitivity   (1w/1m) 92 dB SPL
Long-term   SPL 114 dB
Maximum SPL 120 dB
Low Frequency   Driver 1×12 inch    Cone driver(170mm magnet)
High Frequency   Driver 1×1.75 inch Neodymium   driver
Nominal   Impedance 8ohms
MDF 300 watts
Plywood 300 watts
Radiation   Angle 90 °H x 50 °V Rotatable   Horn
Dimensions (H   x W x D) 354*260*545mm
Enclosure   Material 15mm MDF
Surface   Finished black   catalyzed polyurethane paint
Grille 1.5mm   black perforated steel framed mounted black acoustic foam
Specification
HF:34mm V/C
Iron frame LF:156mm magnet 65mm V/C
HF:34mm V/C
Aluminum frame LF:170mm magnet 65mm V/C
