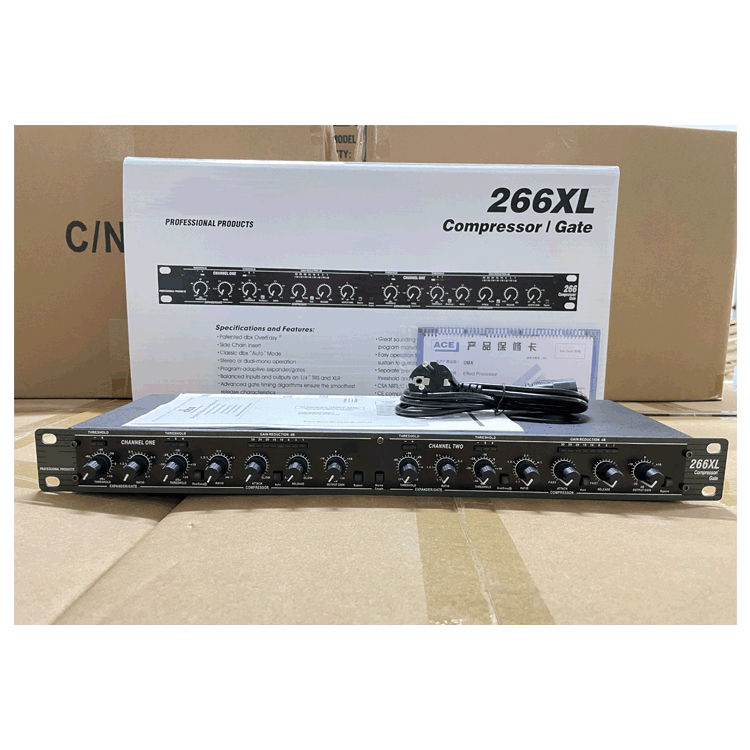

166xs compressor gate sound systems equipment dual channel compressor limiter 266XL speaker limiter

Professional dual channel compression limiter

Technical parameters:
Input Input:RF Filtered Servo-Balanced Input
Input impedance Input impedance: 50KΩ Balanced, 25KΩ Unbalanced
Input level selection Input Level Select: +4dBu/-10dBu Switchable
Maximum input level Maximum input level: +21dBu Balanced and Unbalanced
Output Impedance Output Impedance: 60Ω balanced, 30Ω Unbalanced
Maximum output level Maximum Output Level: +21dBu Balanced and Unbalanced
Frequency response Frequency Response: 0.35Hz~200KHz, +0/-3dB
Signal to noise ratio SNR: >-95dBu, Unweighted, 22Hz~22KHz
Harmonic Distortion: 0.04%typically @ +4dBu, 2KHz, Gain1
Noise Threshold: variable (off~10dBu)
Compression Threshold: variable (-40~+20dBu)
Compression ratio: variable (1:1~∞:1)
Start time Start Time: <1ms/100dB
Release time Release Time: 100ms/100dB
Automatic start time Auto Start time: Typ.15ms@10dB, 5ms@20dB, 3ms@30dB
Automatic release time Auto Release Time: Program Dependent, Typ.125dB/Sec
Output Output:variable(-20~+20dB)
Working voltage Working voltage: 220V
