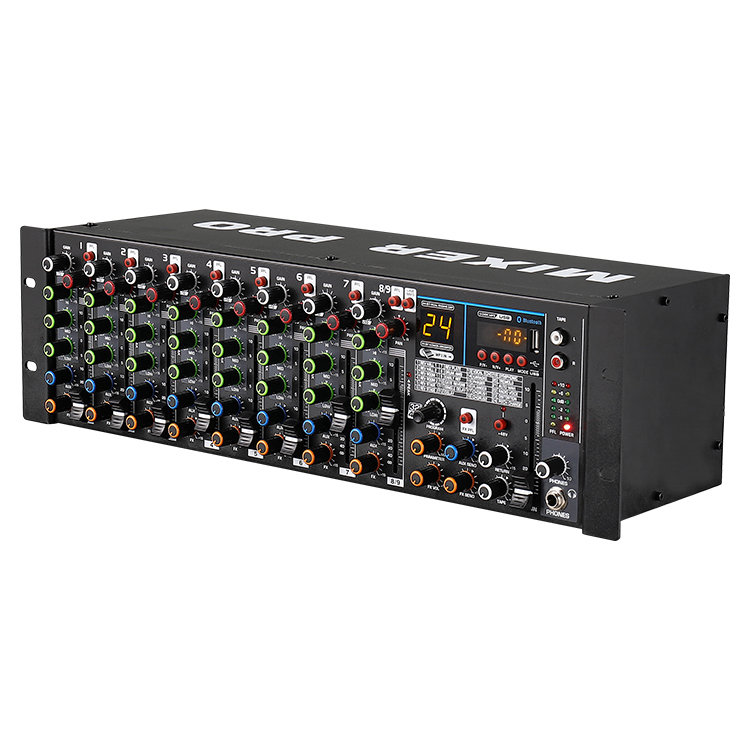

Functional features:
1. A professional Bluetooth style mixer, equipped with an ultra-low noise discrete microphone preamplifier and a+48V phantom power supply, is powerful and complete, with beautiful sound quality.
2. Provide 8-way Mic input interface compatible with 8-way line input interface, with 48V phantom power supply.
3. Provide 4 sets of stereo inputs that can be connected to stereo devices.
4. Each mono input channel is equipped with 3 EQ segments and peak indicator lights.
5. Provide 1 set of stereo main output, 2 sets of auxiliary output, and 1 channel of headphone monitoring output.
6. Built in 24 bit DSP effector.
7. Bluetooth, MP3, large screen player, USB with sound card function, USB computer recording, USB flash drive recording direct recording
Technical parameters:
1. Microphone input: 8 channels (7 XLR connectors)
2. Line input: 7-way single plug mono interface
3. Stereo input: 1 set
4. Each channel is equipped with a PFL button
5. Output channel: 1 set of stereo main output, 2 sets of auxiliary output, and 1 set of headphone monitoring output
6. Effector: 24 bit DSP effector (including vocal, small house, hall, echo, echo+echo, plate, vocal board, choir GTR, rotating GTR, tremolo GTR types)
7. Phantom power supply:+48V with switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone balanced input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main Mix Crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz
19. Power supply: built-in switch power adapter 110-220V, 30W
20. Power consumption: ≤ 23W
21. Dimensions (L × W × H) : 480 * 240 * 140mm
22. Weight: 4kg
