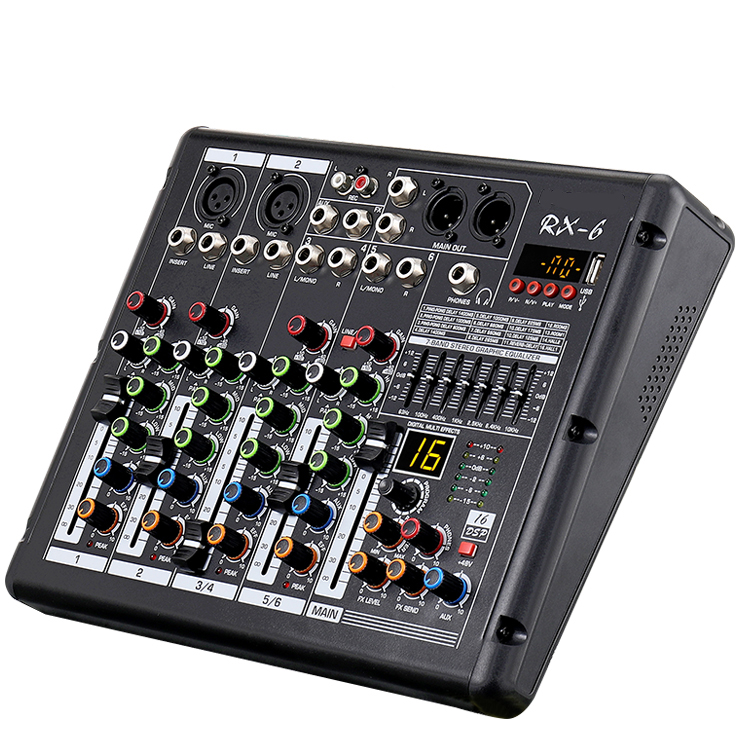

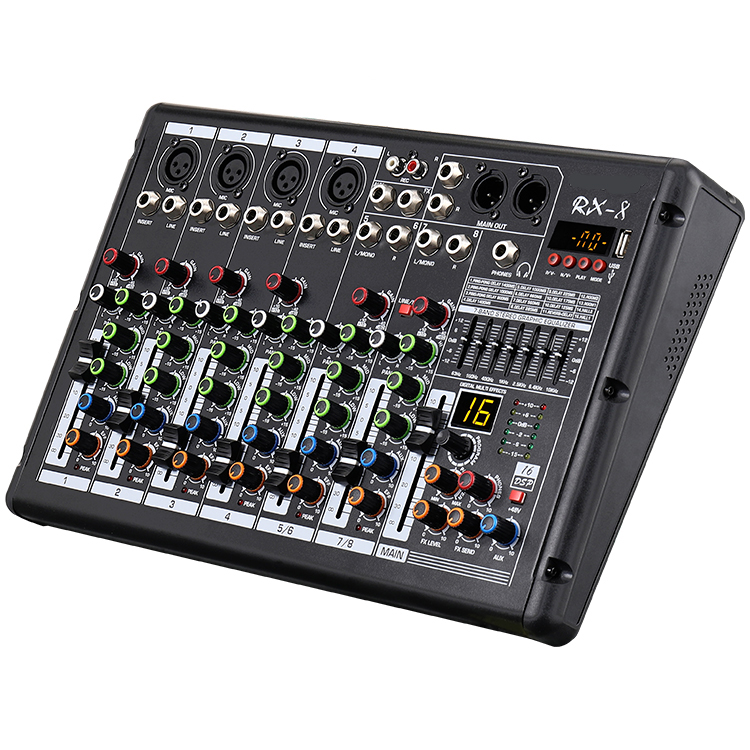

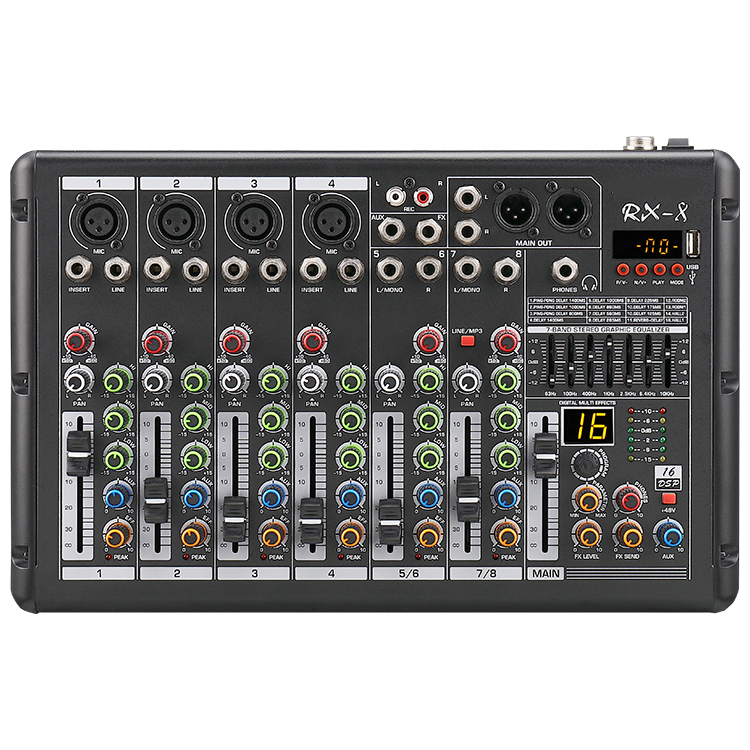

RIY06U、RIY08U Large Model Pure Mixer

MOQ: 10pcs

Quick info

Professional Bluetooth type Mixing console adopts ultra-low noise discrete microphone preamplifier and+48V phantom power supply, with powerful and complete functions and beautiful sound quality.

Back to Contents

Quote Now sales1@epxunguan.com

Description
Additional Information

1. Professional Bluetooth type Mixing console adopts ultra-low noise discrete microphone preamplifier and+48V phantom power supply, with powerful and complete functions and beautiful sound quality.
2. Provide 4-way Mic input interface compatible with 4-way line input interface.
3. Provide 2 sets of stereo linear inputs that can be connected to stereo devices.
4. Each mono input channel is equipped with 3 EQs, 7 built-in stereo equalizers, and peak indicator lights.
5. Provide 1 set of auxiliary outputs and 1 channel of headphone monitoring output.
6. Built in 16 kinds of DSP Effects unit. (Upgrade to 99DSP)
7. Bluetooth, MP3, large screen player, USB with sound card function, USB computer recording, USB flash drive recording direct recording
Technical parameters:
1. Microphone input: 4 channels (2 XLR connectors)
2. Line input: 2-way single plug mono interface
3. Provide 2 sets of stereo linear inputs that can be connected to stereo devices
4. Bluetooth, MP3, large screen player, USB with sound card function, USB computer recording, USB flash drive recording direct recording
5. Output channel: 1 set of auxiliary outputs, 1 channel of headphone monitoring output
6. Effects unit: built-in 16 kinds of DSP Effects unit
7. Phantom power supply: with 48V phantom power switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone balanced input noise: -119dB (A-weighted)
11. Common-mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main Mix Crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz
19. Power supply: External AC18V/1A (AC 230-240V 50/60Hz) power adapter
20. Power consumption: ≤ 18W

line channel	6
MIC	8
Channel EQ	3
Stereo	7
Effects	16dsp
AUX Send	1
MP3 player, BT, USB display, USB with soundcard:	yes
48V phantom power	yes
Fader	60mm
Dimension LXWXH:	30025075mm
N.W.:	1.9kgs
