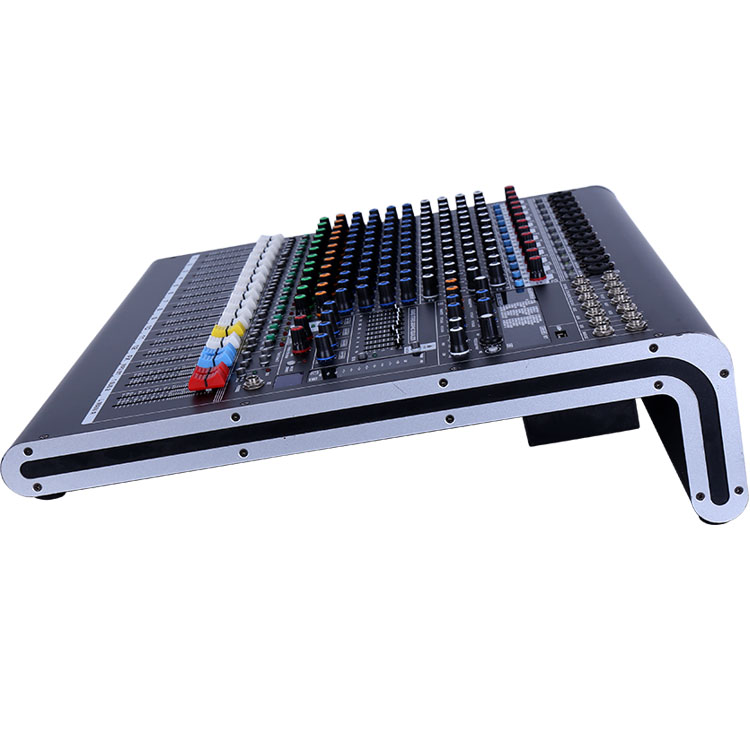

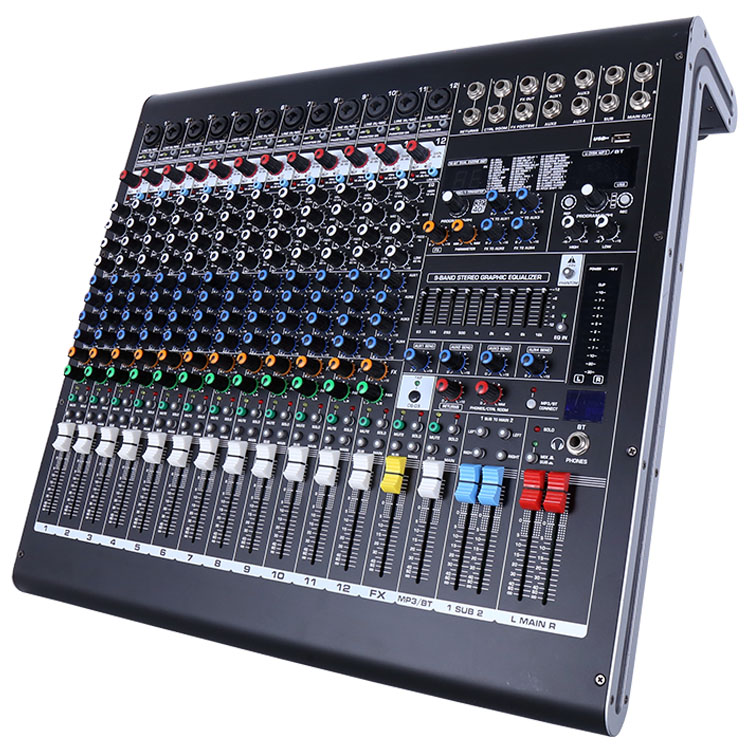

AMC8、AMC12、AMC16、AMC24 Professional Audio Mixer

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

Description

Features:
1. Analog mixer, high-quality ultra-low noise circuit design, large headroom, novel microphone preamplifier, classical 7-band equalizer, can make the tone warm and musical.
2.99 kinds of DSP effects, built-in high-quality sound, stereo with Bluetooth MP3 player
3.9-segment stereo equalizer, each channel is equipped with mute, monitor, low-cut, 48V and volume attenuation switches
4.2 groups have independent audio output terminals

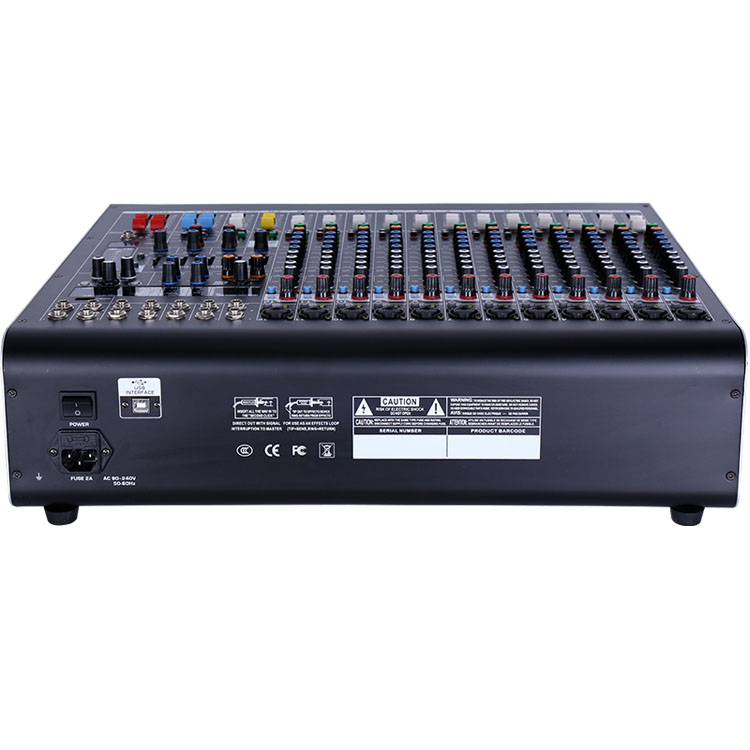

5. The rear panel has an external USB that can be connected to a computer to work.
6. There is a built-in function of low frequency conversion. When the low frequency of the machine is not enough to digitize during use, the built-in bass will automatically improve the low output tone.
7.1 sets of multi-functional stereo auxiliary returns, independent headphone and stereo recording output, high-quality components and extremely solid structure ensure that the product is durable.
8. Each channel is designed with an independent 48v phantom switch.

Model	AMC8	AMC12	AMC16	AMC24
Line Channel	8	12	16	24
Channel EQ	3 BAND
AUX Output	4
Return	1
EFFECT	99 effect
Main EQ	7 BAND
Main OUT	1 Stereo
Phantom Power	48V DC
Total harmonic distortion	< -0.1 %
Frequency response	20Hz-20KHz +1 dB /-3dB
S/N	-75db
Resi dual output noise	<-80dBu
Gain control	MIC 35dB(20dB-60dB) Line 20dB(20dB-60dB)
Power consumption	2 x350W
Hea dphone output power	150mW(1 KHz,THD=0.5%,200 Ω
Maximum output level	18dBm(1KHz,THD=0.5%)
