KN-300 1U Digital Amplifier

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

◆ Large-capacity switching power amplifier

◆ Automatic limit output, short circuit, overload, over temperature, boot delay and other protection functions

◆ The power amplifier is equipped with a delay start system to protect the speaker from damage due to impact

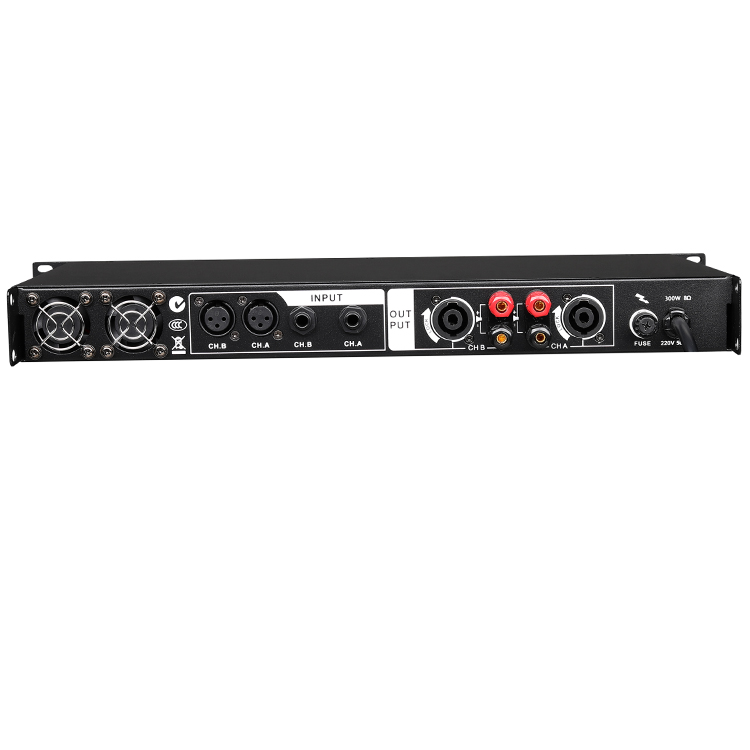

◆ The rear panel is equipped with dual channels,

◆ Balanced input interface

◆ SPEAKON output connector

◆ 483MM standard rack structure

◆ The switching power supply part of the power amplifier part has a separate cooling system

◆ The cooling fan adopts advanced stepless speed change circuit control

◆ 1U design, light body, easy to carry and install

MODEL	KN-300
8Ω Stereo Power	4*600W
4Ω Stereo Power	4x1200W
8Ω Bridged mono output	8Ω 2200W
Frequency Response	20Hz~20kHz ±3dB
THD	1% (at 8Ω, 600W)
Crosstalk	＞70dB @ 8Ω 1KHz
Input Impedance	20K Ω (Balanced)/10KΩ(Unbalance)
Input Sensitivity	+4dB * (1.23V)
Protection	Overheat,short circuits,DC limited and softstart,Output relay-Zero Current Switch,Smart Clip limiter.
Height	1U	1U	1U	1U	1U
