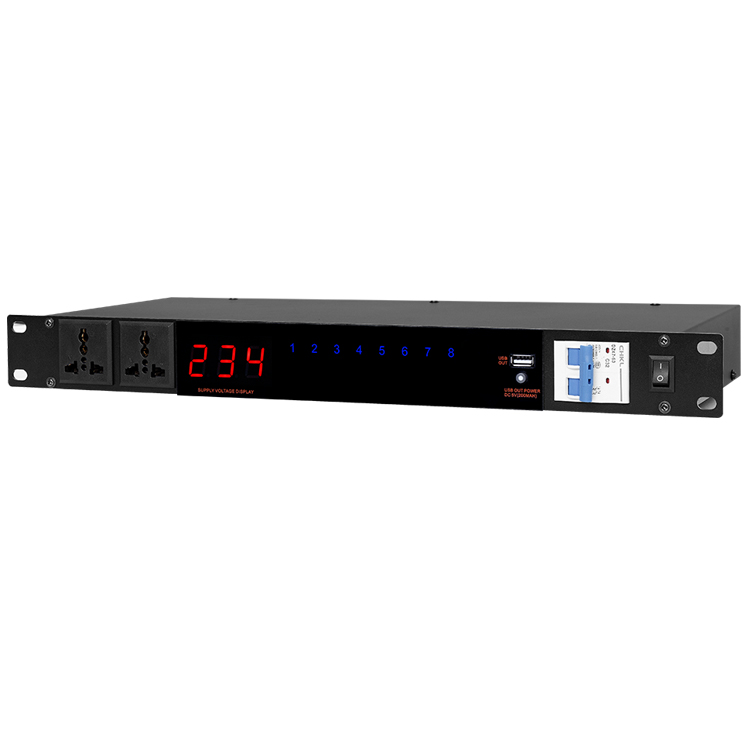

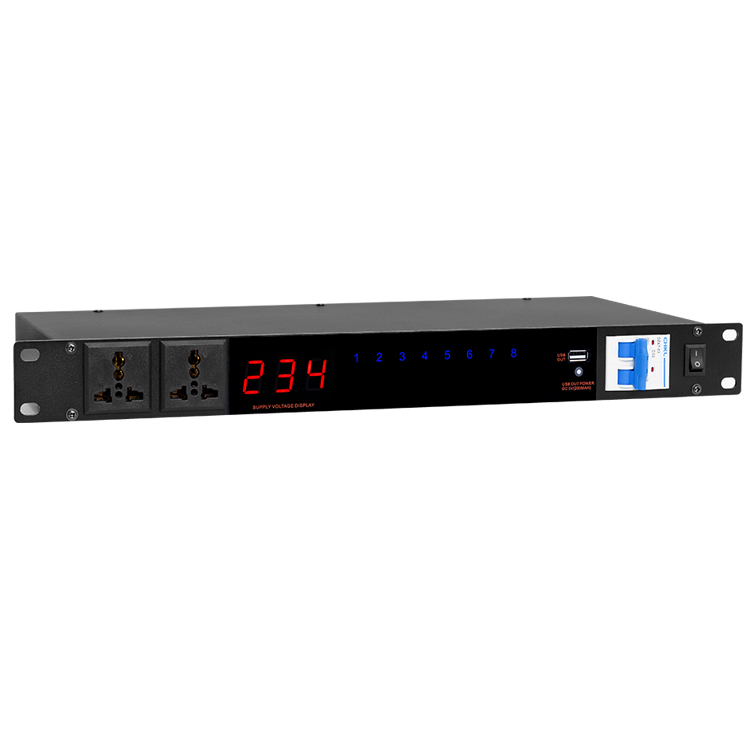

PS-D1300A NO self-locking filter External Phoenix Plug 10CH power sequencer with switch Power sequencer

1. Panel color: Iron black panel

2. Power input conditions (single-phase 3-wire): AC220-240V (optional AC90-240V) 50-60HZ two-phase (three-wire: zero, fire, ground)

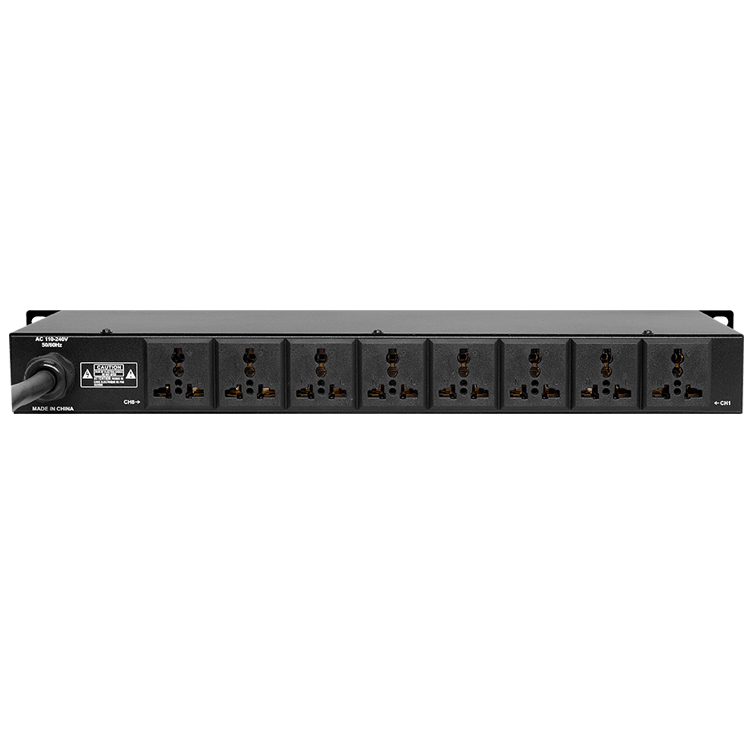

3. Number of channels: 8-way universal socket relay controlled and 2-way universal socket direct output

4. Controlled output of relay, maximum single circuit power/total power (reactive power): 2000W/6000W, maximum reactive power

5. Output power socket specification: Flame retardant ABS material, can withstand a maximum current of 13A, made of phosphor copper material, standard universal socket

6. Functional features: 1. Sequential opening and reverse closing. 2. PASS key can open all channels simultaneously. 3. Accurate voltage display. 4. With 32A air switch

7. Interval time/timing time of each switch: 1.5 seconds

8. Output relay contact current: 30A 277VAC

9. Circuit board specification: double-sided fiberboard, secondary thickening and thickening treatment for main power supply wiring

10. Power supply specification: built-in transformer voltage AC220-240V, optional (switch power supply suitable for global voltage AC90-260V) 50-60HZ

11. Main cable specification: 3 * 4 square cable, with a total length of 1 meter (equipped with power input plug)

12. Opening type: square boat type switch

13. Function display voltage display type: red Nixie tube display Voltmeter
