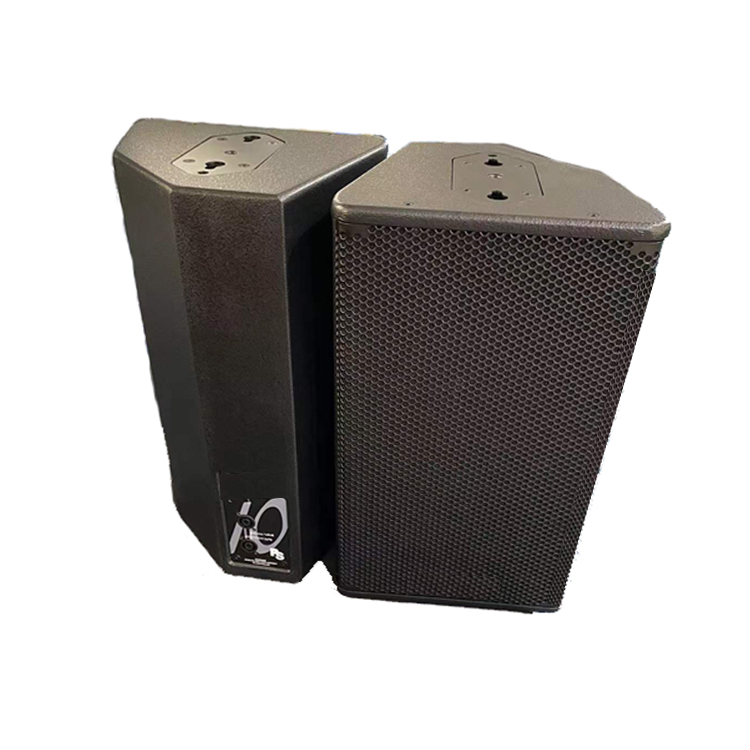

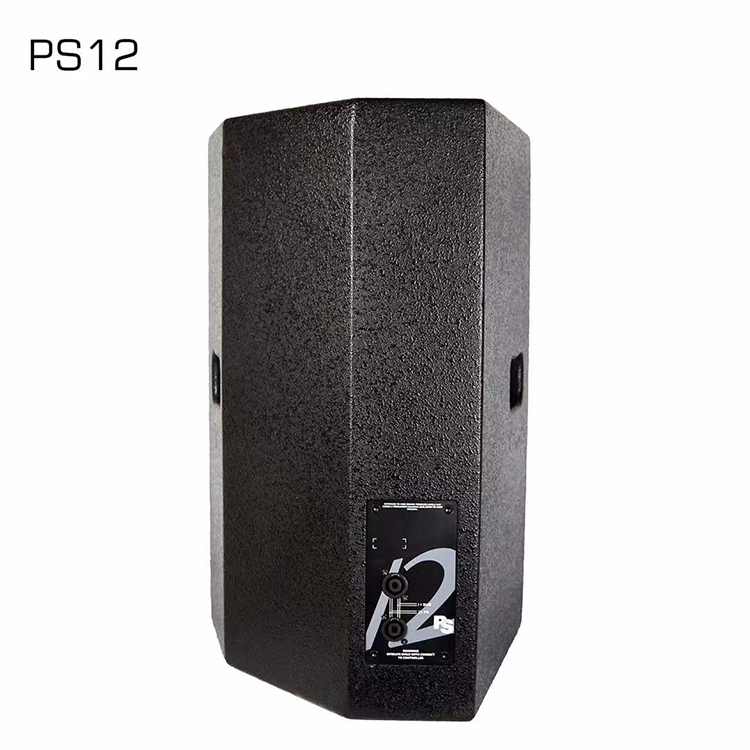

PS12 Single 12 Inch Professional Passive Speaker

MOQ: 8pcs

Back to Contents

A high power system capable of producing 132 dB Peak SPL, the new PS10 Loudspeaker can be safely driven with up to 1250 Watts of amplifier power. Controlled by the new DTD Controller, the PS10 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.

Frequency Response [a] 65 Hz – 20 kHz ±3dB
Usable Range @-6dB [a] 58 Hz – 21 kHz
Sensitivity 1W @ 1m [b]  99 dB SPL Nominal – 97 dB SPL Wideband
Nominal Peak SPL @ 1m [b] 129 to 132 dB Peak
Crossover Frequencies 2 kHz Passive
Nominal Impedance
Specification: Version 1:

HF:34mm V/C Iron frame LF:156magnet 65mm V/C+250W +MDF

Version 2:
HF:34mm V/C Aluminum frame LF:156magnet 65mm V/C+300W+Plywood
carton size: 390*350*567mm
Material Wooden
Color Balck
