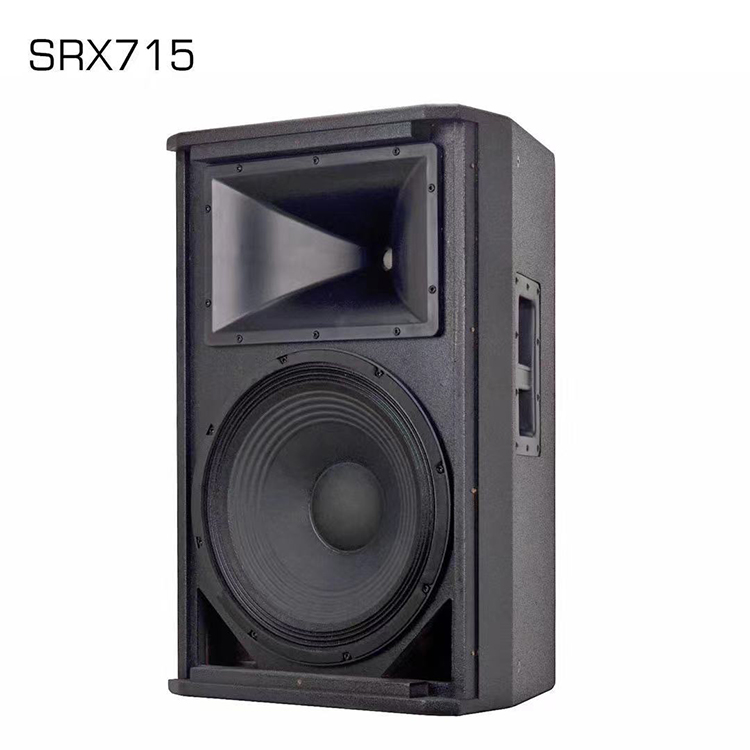

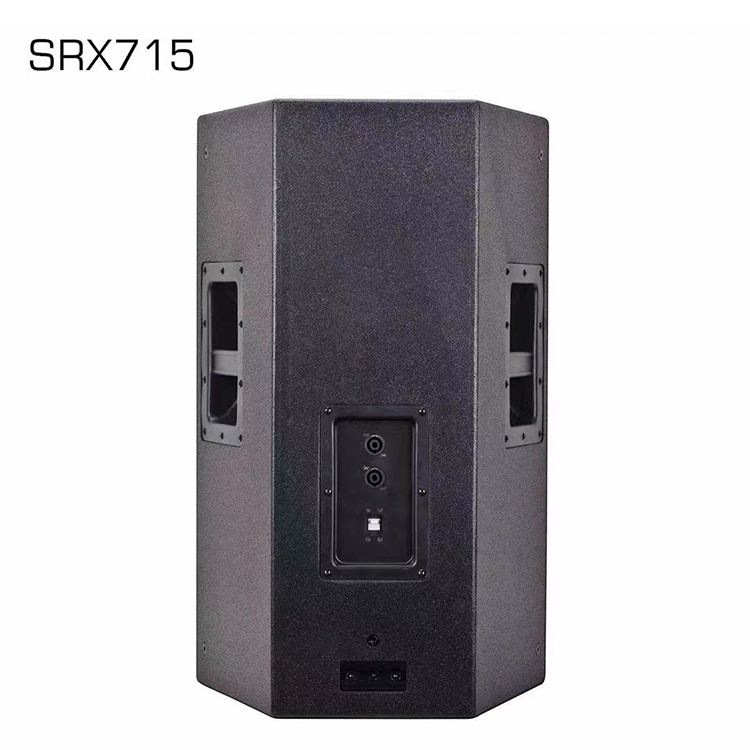

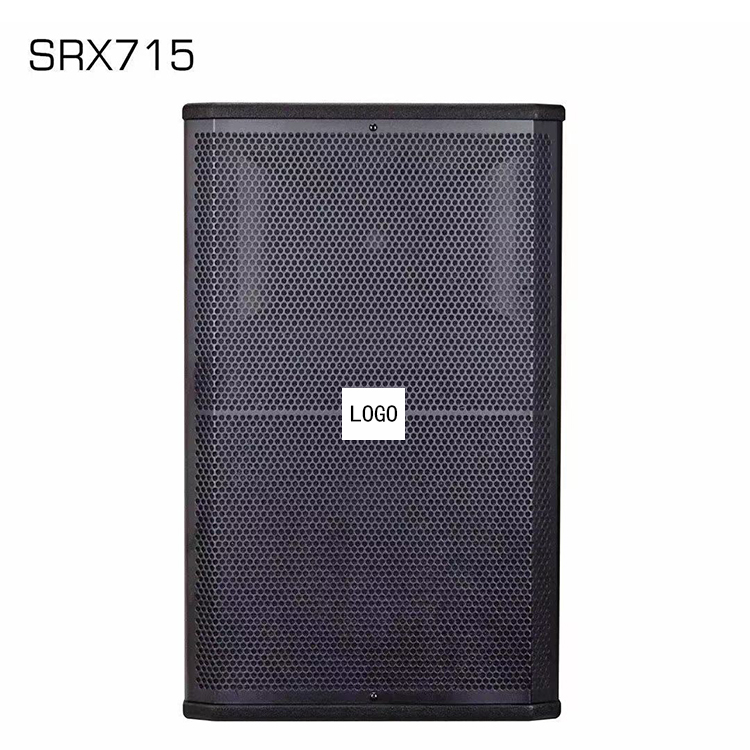

SRX715 15 Inch Professional Passive Speaker

MOQ: 10pcs

Quick info

SRX715 is a high-power, lightweight two-way loudspeaker system offering the highest level of performance available from a speaker that can be placed on a pole or standard speaker tripod stand.



    • Compact and low-profile for minimal obstruction of audience sight-lines
    • 90° x 50° nominal coverage
    • Bi-amplified or full-range passive operation
Back to Contents
  • Description
  • Additional Information

SRX715 is a high-power, lightweight two-way loudspeaker system offering the highest level of performance available from a speaker that can be placed on a pole or standard speaker tripod stand. The SRX715 is comprised of a 15 in 2265H patented Differential Drive woofer which handles 800 watts (continuous) yet the entire system weighs only 48 lb. For high frequencies, a 2431H 3 in voice-coil, neodymium compression driver is mounted to a 75° by 50° aluminum horn. Bi-amp or full-range passive operation may be selected by means of a recessed, high-current switch mounted on the input plate. For use on a tripod or over a subwoofer,dual-angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.

Model SRX715
Frequency   Response (±3 dB) 53 Hz – 20 kHz
Sensitivity   (1w/1m) 92 dB SPL
Long-term   SPL 114 dB
Maximum SPL 120 dB
Low Frequency   Driver 1×15inch    Cone driver(170mm magnet)
High Frequency   Driver 1×1.75 inch Neodymium   driver
Nominal   Impedance 8ohms
MDF 300 watts
Plywood 300 watts
Radiation   Angle 90 °H x 50 °V Rotatable   Horn
Dimensions (H   x W x D) 780*480*520mm
Enclosure   Material 15mm MDF
Surface   Finished black   catalyzed polyurethane paint
Grille 1.5mm   black perforated steel framed mounted black acoustic foam
Specification
HF:44mm V/C
Iron frame LF:170mm magnet 75mm V/C

HF:44mm V/C
Aluminum frame LF:190mm magnet 75mm V/C

HF:75mm V/C
Aluminum frame LF:190mm magnet 75mm V/C
HF:75mm V/C
Aluminum frame LF:220mm magnet 100mm V/C
