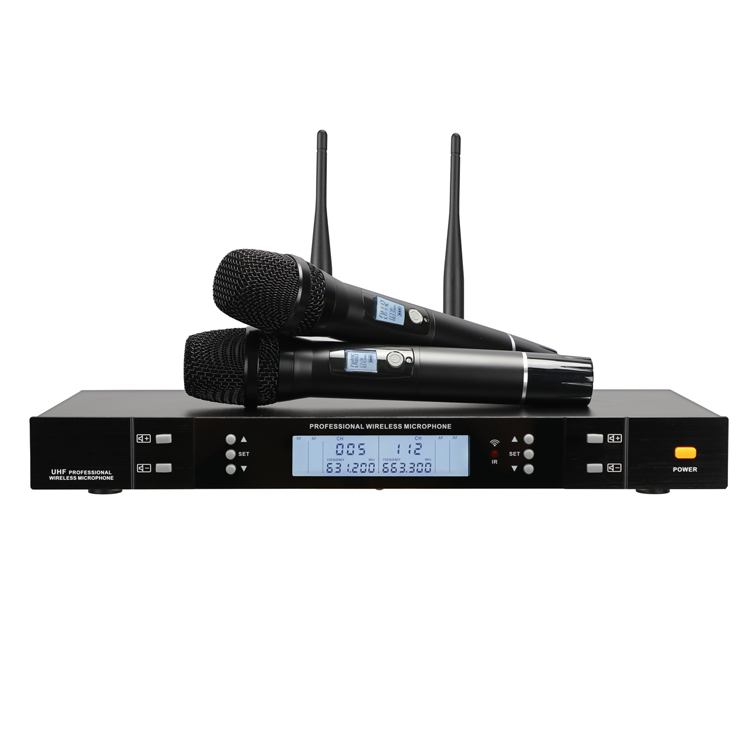

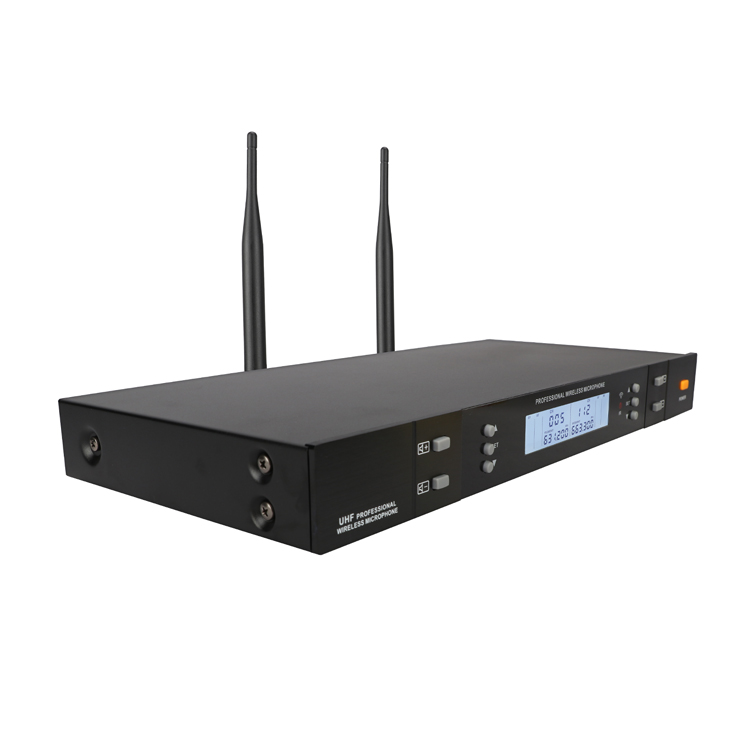

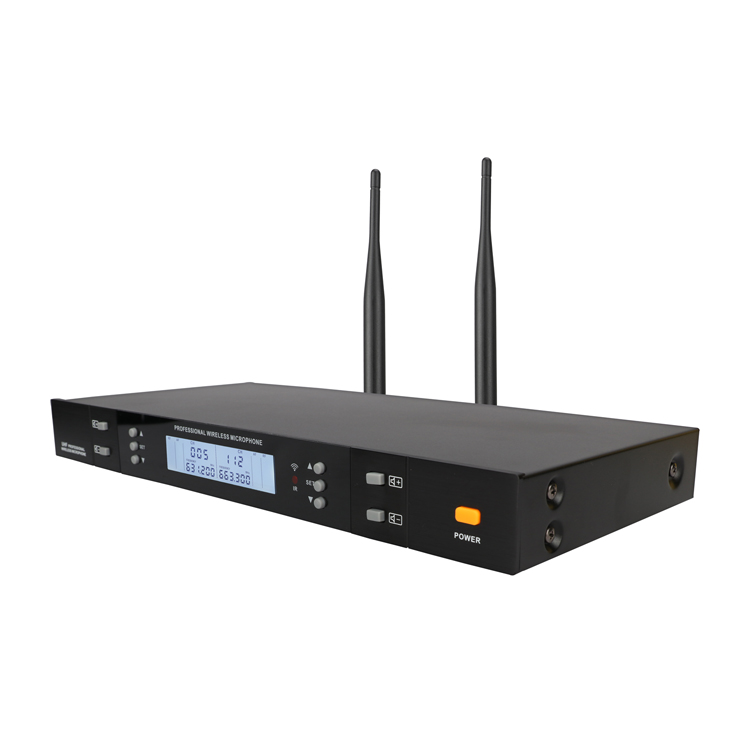

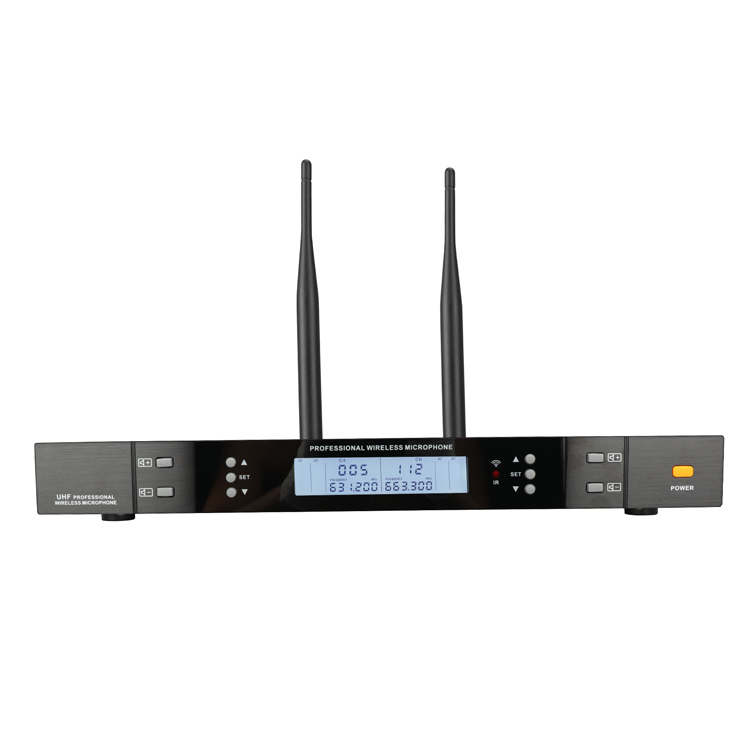

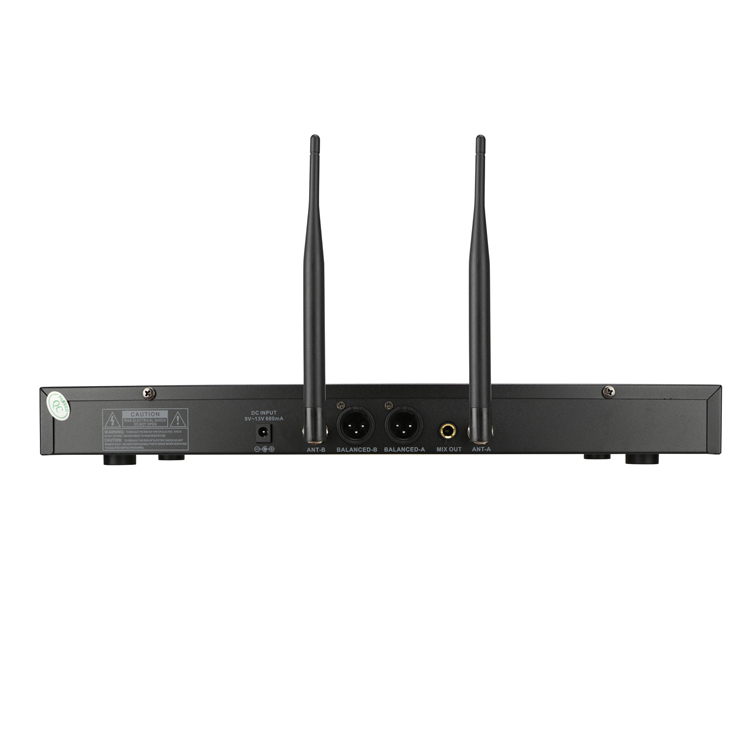

RIY-0321-A、RIY-0321-B UHF IR Infrared Wireless Microphone

MOQ: 10pcs

Back to Contents
  • Specification
Model
RIY-0321
Oscillation mode
PLL frequency synthesis
Frequency range
UHF499MHz-900MHz
Frequency stability
±0.001%
Modulation mode
FM
SNR
>60dB
Distortion
<0.5%@1KHz
Receiver sensitivity
1.2/UV @S/N=12dB
Power supply
DC 12V
Audio output
Independent 0-2V2/Hybrid 0-2V
Power supply
DC 3V(1.5V AA×2)
Microphone power consumption
110mA
Carrier frequency
UHF499MHz-937MHz
Frequency stability
±0.001%
Max frequency offset
±70KHz
SNR
>60dB
Adjacent frequency interference ratio
>80dB
Dynamic range
≥100dB
Type
Dynamic
Polarity mode
Cardioid
Frequency response
60Hz-17KHz
Microphone sensitivity
-42±2dB@1KHz
