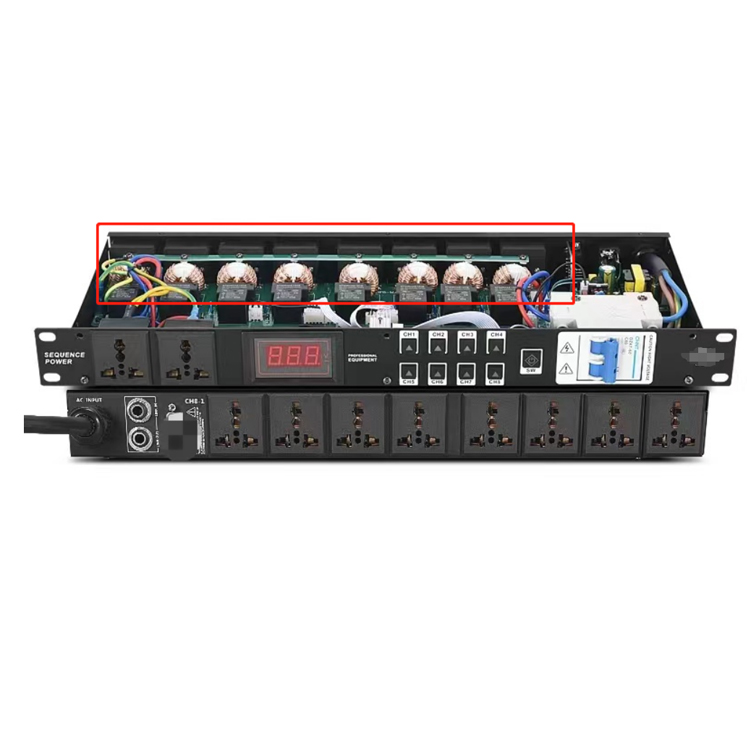

SR-828 Power Sequencer With Air Switch 8+2 Channel Sequencer

MOQ: 10pcs

Back to Contents
  • Specification
Production name
SR828
parameter
1. Panel color: Iron black panel
2. Power input conditions (single-phase 3-wire): AC220-240V (optional AC90-240V) 50-60HZ two-phase (three-wire: zero, fire, ground)
3. Number of channels: 8-way universal socket relay controlled and 2-way universal socket direct output
4. Controlled output of relay, maximum single circuit power/total power (reactive power): 2000W/6000W, maximum reactive power
5. Output power socket specification: Flame retardant ABS material, can withstand a maximum current of 13A, made of phosphor copper material, standard universal socket
6. Functional features: 1. Sequential opening and reverse closing. 2. PASS key can open all channels simultaneously. 3. Accurate voltage display. 4. With 32A air switch
7. Interval time/timing time of each switch: 1.5 seconds
8. Output relay contact current: 30A 277VAC
9. Circuit board specification: double-sided fiberboard, secondary thickening and thickening treatment for main power supply wiring
10. Power supply specification: built-in transformer voltage AC220-240V, optional (switch power supply suitable for global voltage AC90-260V) 50-60HZ
11. Main cable specification: 3 * 4 square cable, with a total length of 1 meter (equipped with power input plug)
12. Opening type: square boat type switch
13. Function display voltage display type: red Nixie tube display voltmeter
14. Body size: 480MM long * 165MM wide * 48MM high (non-standard 1U)
15. Single unit packaging size: length 510MM * width 260MM * height 100MM (color printing box)
16. Quantity, total weight, and outer packaging size: 1 piece, 5 sets, totaling 16KG. Outer packaging size: 562MM long * 274MM wide * 450MM high
17. Total weight (including packaging): 3KG
